Home > Indoor Rental LED Display

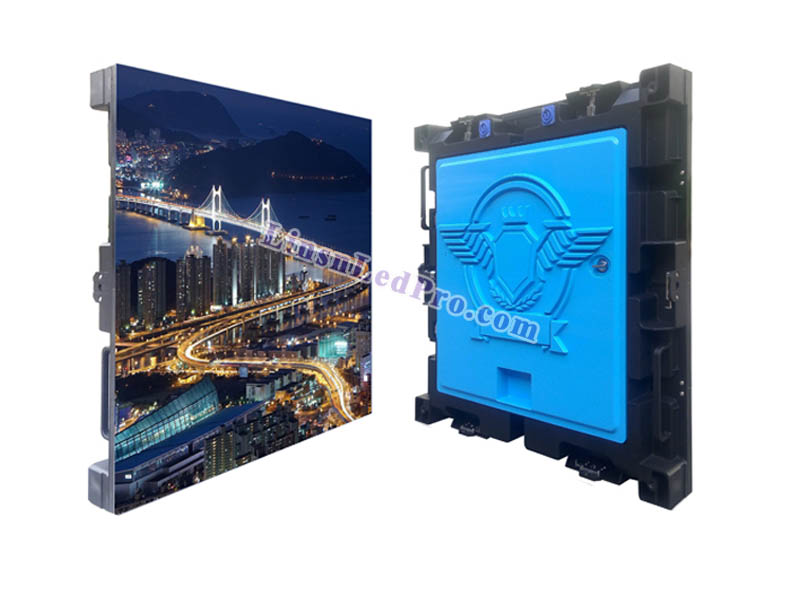

P5 SMD Indoor Rental LED Display Cabinet
Features:
- High quality LED chips and HD effect with 40,000pixels/sq.m;
- Magnisium alloy panel enables seamless connection;
- Ultra-slim &light LED panel, perfect for both rental and fixed use;

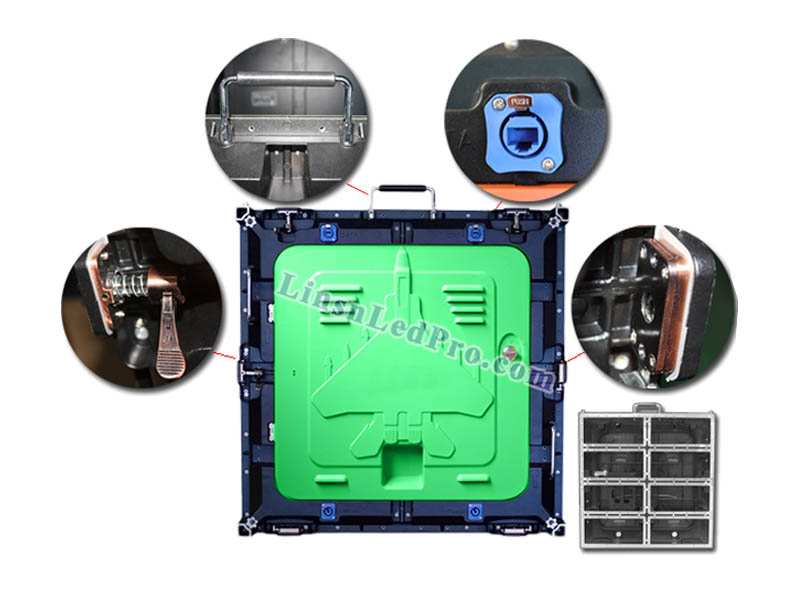

- Speady setup and teardown with fast locks, easy maintenance;
- Large viewing angle-H/V(145°/145°) and high contrast ratio;
- Excellent heat dissipation and low power consumption;
- Suitable for all kinds of indoor events with super close viewing distances;
- User friendly software operation, programs played can be digitally set;
- Highly compatible with led video processor on multiple signal inputs;
- Support LINSN and other popular control systems in the market.
Specifications:
| 1 |
Pixel pitch |
5mm |
| 2 |
Pixel density |
40,000 pixels/sq.m |
| 3 |
Pixel configuration |
1R1G1B, SMD3528, 3in1, white or black LEDs |
| 4 |

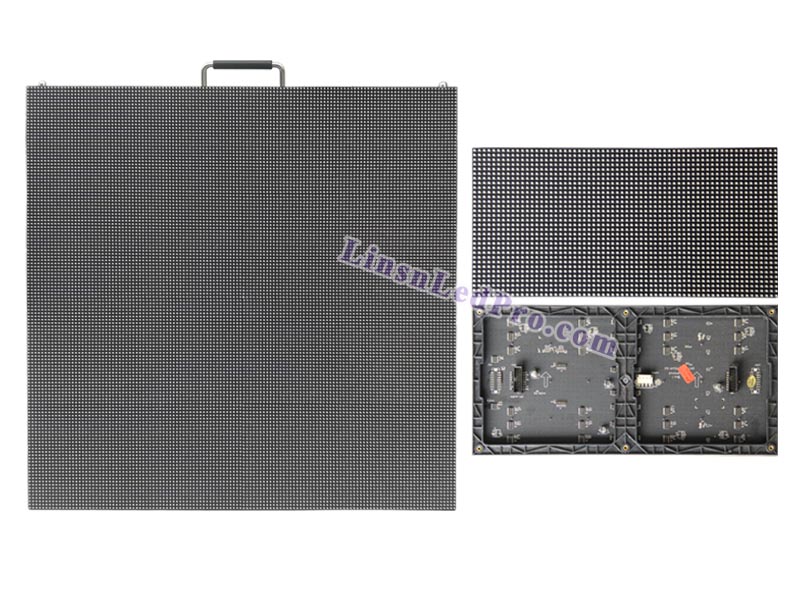

LED module size (L*H) |
320*160mm |
| 5 |
LED module resolution |
64*32 pixels |
| 6 |
LED cabinet size (L*H*D) |
640*640*80mm |
| 7 |
LED cabinet resolution |
128*128 pixels |
| 8 |
LED display cabinet weight |
12.50KG/panel |
| 9 |
LED display cabinet material |
Diecasting aluminum |
| 10 |
Brightness |
≥1,500 nits/sq.m |
| 11 |
Driving method |
1/16 scan |
| 12 |
Viewing angle |
145°H /145°V |
| 13 |
Best viewing distance |
>5M |
| 14 |
Refresh rate |
≥800Hz |
| 15 |
Grey scale |
≥4,096 levels |
| 16 |
Display colors |
>16.7M |
| 17 |
Power consumption |
Max.:1,200W/sq.m, Avg.:480W/sq.m |
| 18 |
Input voltage |
110~230V/AC (±10%) |
| 19 |
Input power frequency |
50/ 60Hz |
| 20 |
IP rating (front/rear) |
IP43 |
| 21 |
Operating environment |
Temperature: -20°C~+50°C, Humidity: 10%~95% |
| 22 |
Storage environment |
Temperature:-40-50°C, Humidity: 10-90% |
| 23 |
Life span (50% brightness) |
≥100,000 hours |
| 24 |
Control system |
LINSN or other popular control systems |
| 25 |
Transmission distance |
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m |
| 26 |
Operating system |
Windows XP/Win7//8/Vista |
| 27 |
Video input/with video processor: Rgblink,Vdwall,Magnimage,etc |
VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc |
| 28 |
Compliant standard |
CE/UL/RoHS |
