P2.5 Indoor Rental LED Display
P2.5 rental LED display is ideally suited for indoor applications requiring extremely clear image details at very close viewing distance.
Features:
- Ultra high resolution---160,000 pixels /sq.m
- Black LEDs---high contrast ratio and vivid colors
- Long life span and electricity saving
- Easy set up and convenient maintenance
- Good protection against dust, moisture, static, etc
- Brightness is adjustable by software or video processor.
- Calibration technology on the LED lamps is supported.
- Other customized design can be made as requested.
- Control systems supported: Linsn, Dbstar, NovaStar, Colorlight,etc
- User friendly software operation, programs played can be digitally edited.
- High compatibility with all kinds of video formats on its software
-Supports LINSN and other popular control systems
Specifications:
| 1 |
Pixel pitch |
2.5mm |
| 2 |
Pixel density |
160,000 pixels/sq.m |
| 3 |
Pixel configuration |
1R1G1B, SMD2121 3in1 |
| 4 |

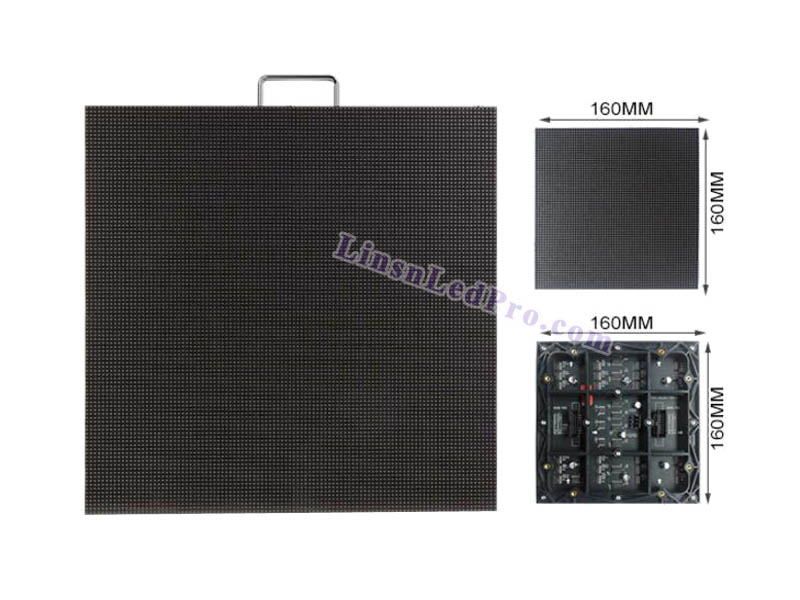

LED module size (L*H) |
160*160mm |
| 5 |
LED module resolution |
64*64 pixels |
| 6 |
LED cabinet size (L*H*D) |
640*640*80mm |
| 7 |
LED cabinet resolution |
256*256 pixels |
| 8 |
LED display cabinet weight |
12.50KG/panel |
| 9 |
LED display cabinet material |
Diecasting aluminum |
| 10 |
Brightness |
≥1,500 nits/sq.m |
| 11 |
Driving method |
1/16 or 1/32 scan |
| 12 |
Viewing angle |
145°H /145°V |
| 13 |
Best viewing distance |
>2.5M |
| 14 |
Refresh rate |
≥1,000Hz |
| 15 |
Grey scale |
≥4,096 levels |
| 16 |
Display colors |
>16.7M |
| 17 |
Power consumption |
Max.: 980W/sq.m, Avg.: 392W/sq.m |
| 18 |
Input voltage |
110~230V/AC (±10%) |
| 19 |
Input power frequency |
50/ 60Hz |
| 20 |
IP rating (front/rear) |
IP43 |
| 21 |
Operating environment |
Temperature: -20°C~+50°C, Humidity: 10%~95% |
| 22 |
Storage environment |
Temperature:-40-50°C, Humidity: 10-90% |
| 23 |
Life span (50% brightness) |
≥100,000 hours |
| 24 |
Control system |
LINSN or other popular control systems |
| 25 |
Transmission distance |
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m |
| 26 |
Operating system |
Windows XP/Win7//8/Vista |
| 27 |
Video input/with video processor: Rgblink,Vdwall,Magnimage,etc |
VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc |
| 28 |
Compliant standard |
CE/UL/RoHS |
