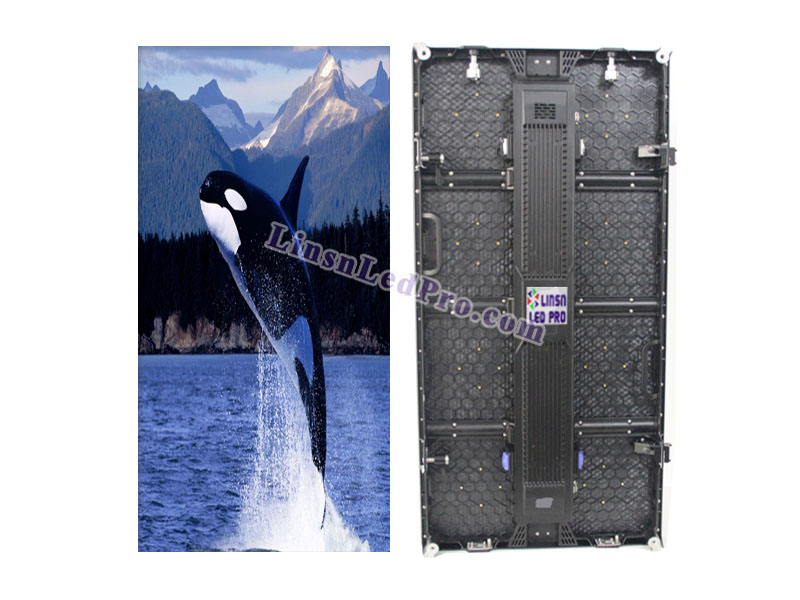

P4.81 SMD Indoor Rental LED Display

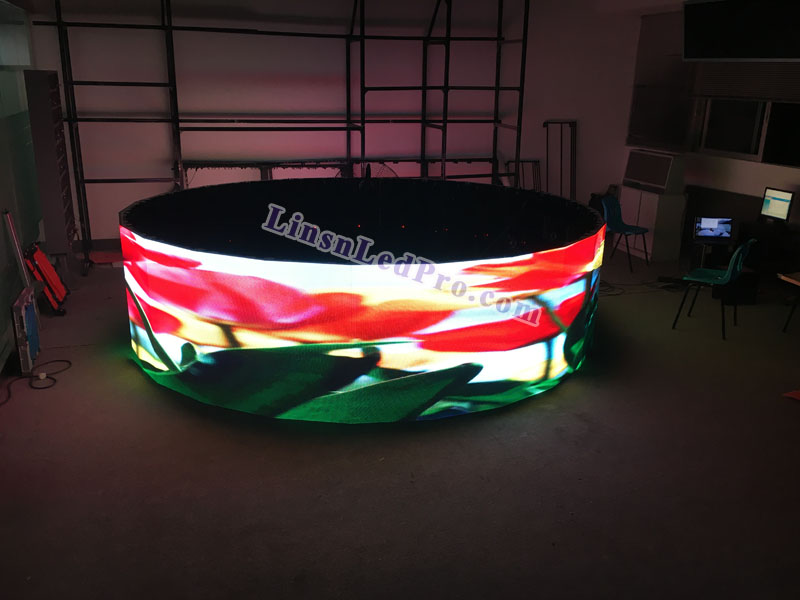

Geard with angle adjustors, this compact P4.81 SMD indoor rental LED panel can be set up as curved or circular display as needed with its 500x 1000mm or 500 x 500mm panel size.
Features:
- Super high definition, 43,222 pixels per square meter;
- Ultra light and slim, only 13KG and 80mm depth;
- Easy set up with fast locks and less maintenance;
- Refresh rate with up to 2,000Hz & up to 98% for luminous efficiency;
- With strengthening rigs, much stronger and also be used as carry handles;

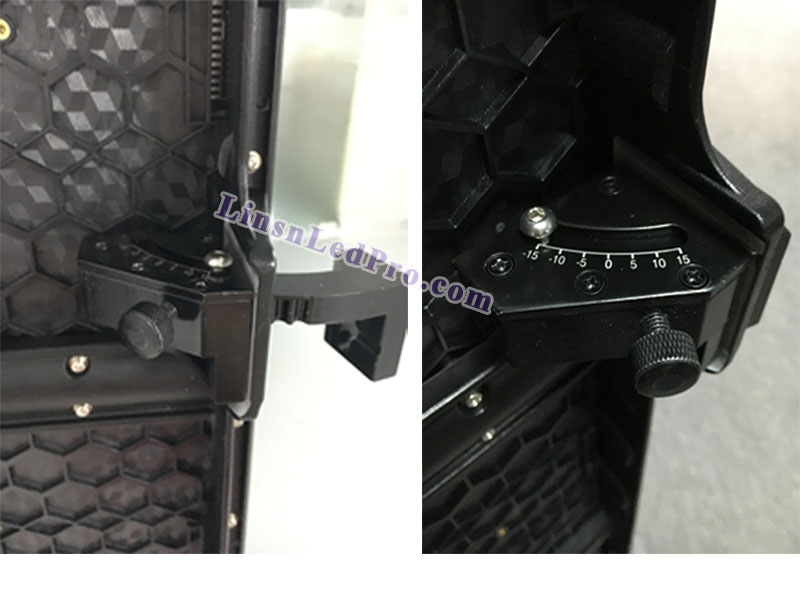

- Supports +-15 degree radian conjunction with angle regulators;
- LED lights on rear cover to indicate working status;
- Noiseless design and speedy heat vending enables longer lifespan;
- Can vertically hang up 18 panels with truss bar;
- Ideally suited for both fixed and rental applications.
Specifications:
| 1 |
Pixel pitch |
4.81mm |
| 2 |
Pixel density |
43,222 pixels/sq.m |
| 3 |
Pixel configuration |
1R1G1B, SMD2121 3in1 |
| 4 |

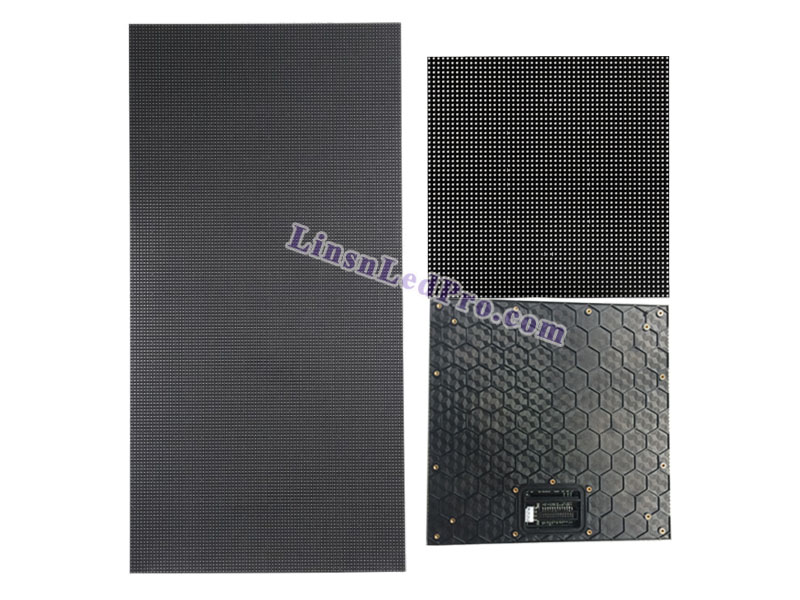

LED module size (L*H) |
250*250mm |
| 5 |
LED module resolution |
52*52 pixels |
| 6 |
LED cabinet size (L*H*D) |
500*1000*80mm or 500*500*80mm |
| 7 |
LED cabinet resolution |
104*208 pixels |
| 8 |
LED display cabinet weight |
13.50KG/panel |
| 9 |
LED display cabinet material |
Diecasting Aluminum |
| 10 |
Brightness |
≥1,400 nits/sq.m |
| 11 |
Driving method |
1/13 scan |
| 12 |
Viewing angle |
140°H /140°V |
| 13 |
Best viewing distance |
>4.8M |
| 14 |
Refresh rate |
≥1,920Hz |
| 15 |
Grey scale |
≥4,096 levels |
| 16 |
Display colors |
>16.7M |
| 17 |
Power consumption |
Max.:1,100W/sq.m, Avg.:440W/sq.m |
| 18 |
Input voltage |
110~230V/AC (±10%) |
| 19 |
Input power frequency |
50/ 60Hz |
| 20 |
IP rating (front/rear) |
IP43 |
| 21 |
Operating environment |
Temperature: -20°C~+50°C, Humidity: 10%~95% |
| 22 |
Storage environment |
Temperature:-40-50°C, Humidity: 10-90% |
| 23 |
Life span (50% brightness) |
≥100,000 hours |
| 24 |
Control system |
LINSN or other popular control systems |
| 25 |
Transmission distance |
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m |
| 26 |
Operating system |
Windows XP/Win7//8/Vista |
| 27 |
Video input/with video processor: Rgblink,Vdwall,Magnimage,etc |
VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc |
| 28 |
Compliant standard |
CE/UL/RoHS |
