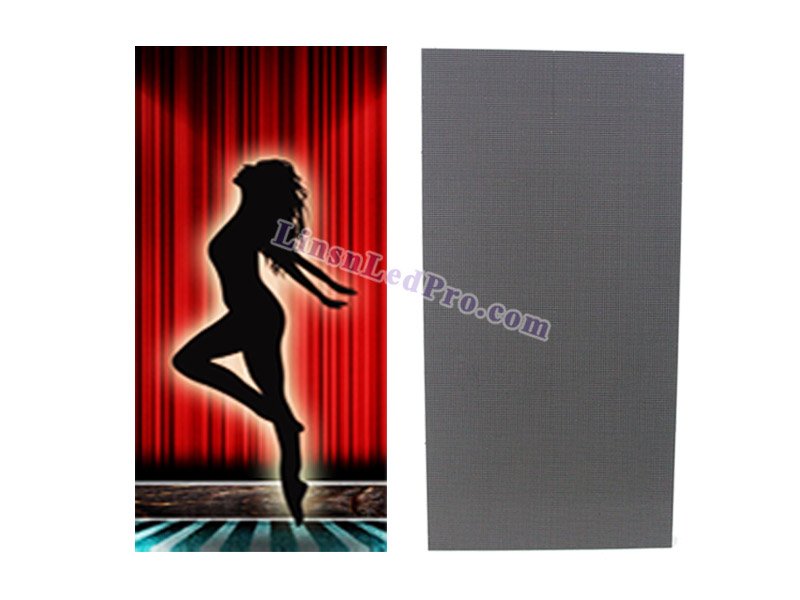

Indoor P3.91mm Rental LED Display Panels
Features:

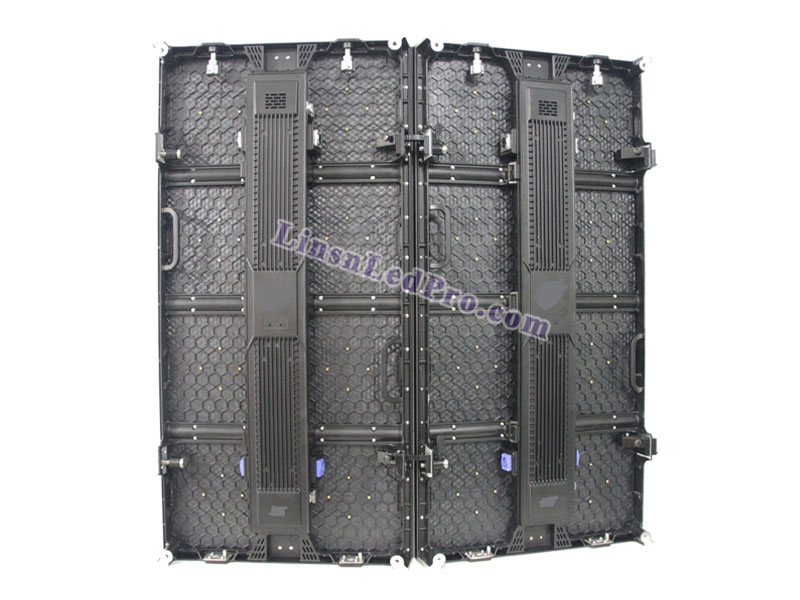

- Die casting aluminum, seamless connection;
- Ultra slim and light, only 13KG/panel;
- Speedy setup and tear down with fast lock;
- Fanless design enables silent operation;

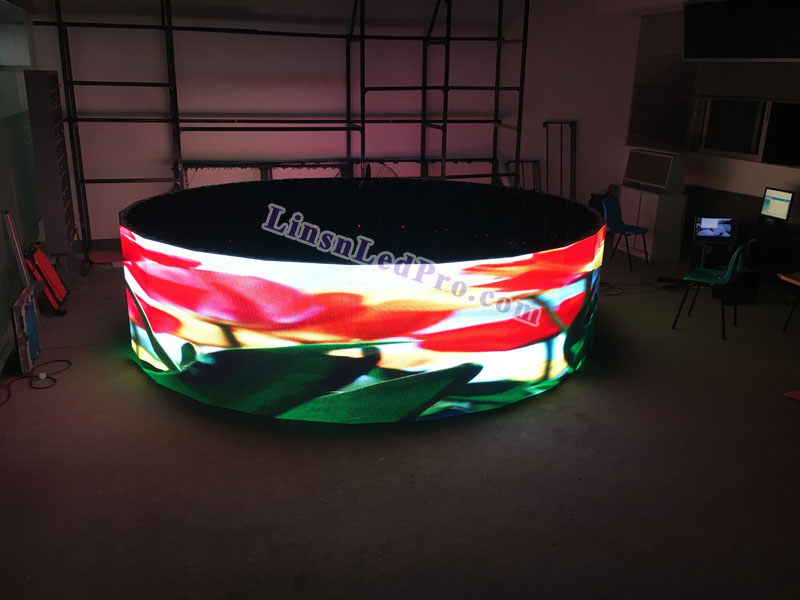

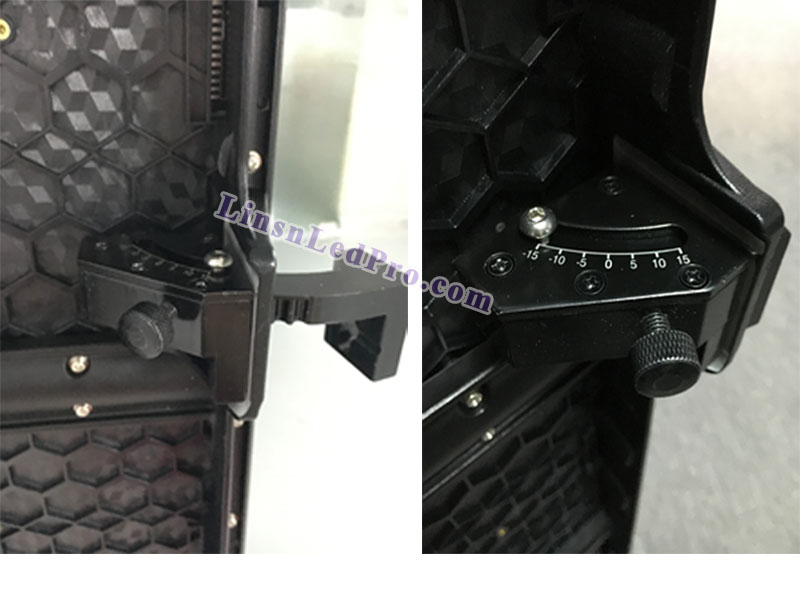

- Angle adjustors to allow curve or circular installation;
- Black LEDs to produce more vivid and richer colors;
- High refresh rate and contrast ratio;
- Good protection against dust, moisture, static, etc;
- Excellent heat dissipation and low power consumption.
Specifications:
| 1 |
Pixel pitch |
3.91mm |
| 2 |
Pixel density |
56,636 pixels/sq.m |
| 3 |
Pixel configuration |
1R1G1B, SMD2121 3in1 |
| 4 |
LED podule size (L*H) |
250*250mm |
| 5 |
LED module resolution |
64*64 pixels |
| 6 |
LED panel size (L*H*D) |
500*1000*80mm or 500*500*80mm |
| 7 |
LED panel resolution |
128*256 pixels |
| 8 |
LED display panel weight |
13.50KG/piece |
| 9 |
LED display panel material |
Diecasting aluminum |
| 10 |
Brightness |
≥1,400 nits/sq.m |
| 11 |
Driving method |
1/16 scan |
| 12 |
Viewing angle |
140°H /140°V |
| 13 |
Best viewing distance |
>3.9M |
| 14 |
Refresh rate |
≥1,920Hz |
| 15 |
Grey scale |
≥4,096 levels |
| 16 |
Display colors |
>16.7M |
| 17 |
Power consumption |
Max.:1,100W/sq.m, Avg.:440W/sq.m |
| 18 |
Input voltage |
110~230V/AC (±10%) |
| 19 |
Input power frequency |
50/ 60Hz |
| 20 |
IP rating (front/rear) |
IP43 |
| 21 |
Operating environment |
Temperature: -20°C~+50°C, Humidity: 10%~95% |
| 22 |
Storage environment |
Temperature:-40-50°C, Humidity: 10-90% |
| 23 |
Life span (50% brightness) |
≥100,000 hours |
| 24 |
Control system |
LINSN or other popular control systems |
| 25 |
Transmission distance |
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m |
| 26 |
Operating system |
Windows XP/Win7//8/Vista |
| 27 |
Video input/with video processor: Rgblink,Vdwall,Magnimage,etc |
VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc |
| 28 |
Compliant standard |
CE/UL/RoHS |
