Indoor P6 SMD Rental LED Display System

Rental LED Display
Model: LLP-IRP6mm
Leadtime: within 15 Days
Warranty: 2 Years
Product description: Indoor P6 SMD rental LED display system is geared with magnisium alloy cabinet in 576x576x80mm size. It is one of the most affordable solution for stage and rental applications.
INQUIRY

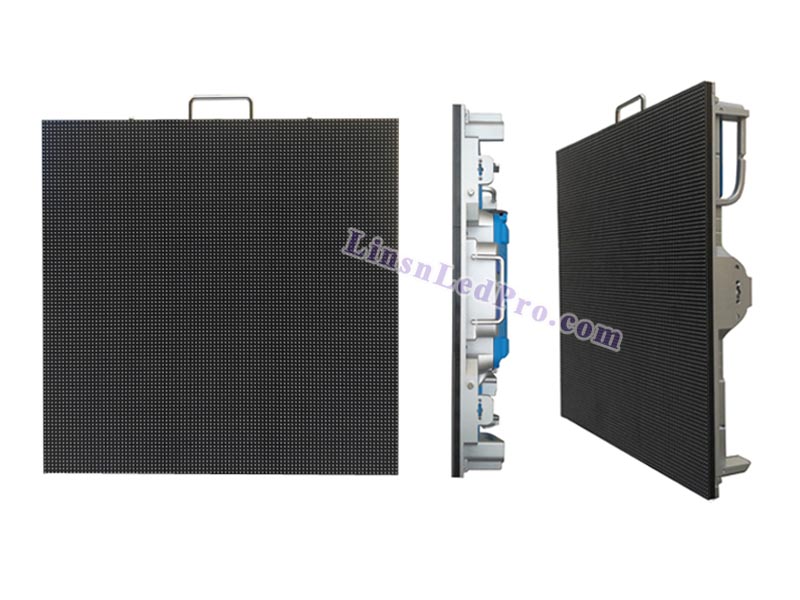

Indoor P6 SMD Rental LED Display System

Features:
- Magnisium alloy panel enables seamless connection;
- Ultra-slim &light LED panel, perfect for both rental and fixed use;
- Speady setup and teardown with fast locks, easy maintenance;
- Large viewing angle-H/V(145°/145°) and high contrast ratio;
- Excellent heat dissipation and low power consumption;
- Suitable for all kinds of indoor events with close viewing distances;
- User friendly software operation, programs played can be digitally set;
- Highly compatible with led video processor on multiple signal inputs;
- Support LINSN and other popular control systems in the market.

Specifications:

1	Pixel pitch	6mm
2	Pixel density	27,777 pixels/sq.m
3	Pixel configuration	1R1G1B, SMD3528, 3in1
4	LED module size (L*H)	192*192mm
5	LED module resolution	32*32 pixels

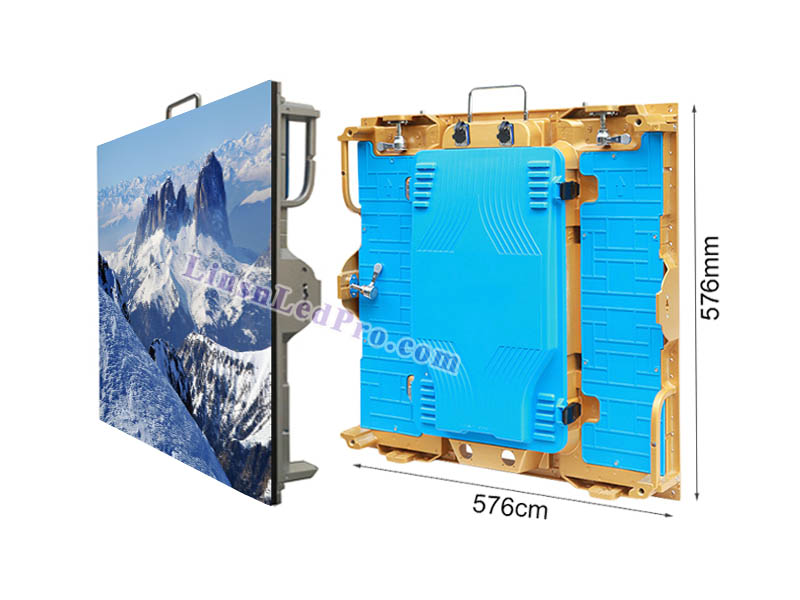

6	LED panel size (LHD)	57657680mm
7	LED panel resolution	96*96 pixels
8	LED display system panel weight	9KG/piece
9	LED system panel material	Magnisium alloy
10	Brightness	≥1,500 nits/sq.m
11	Driving method	1/16 scan
12	Viewing angle	145°H /145°V
13	Best viewing distance	>6M
14	Refresh rate	≥800Hz
15	Grey scale	≥4,096 levels
16	Display colors	>16.7M
17	Power consumption	Max.:1,200W/sq.m, Avg.:480W/sq.m
18	Input voltage	110~230V/AC (±10%)
19	Input power frequency	50/ 60Hz
20	IP rating (front/rear)	IP43
21	Operating environment	Temperature: -20°C~+50°C, Humidity: 10%~95%
22	Storage environment	Temperature:-40-50°C, Humidity: 10-90%
23	Life span (50% brightness)	≥100,000 hours
24	Control system	LINSN or other popular control systems
25	Transmission distance	Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26	Operating system	Windows XP/Win7//8/Vista
27	Video input/with video processor: Rgblink,Vdwall,Magnimage,etc	VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28	Compliant standard	CE/UL/RoHS
