P8 Outdoor SMD​ Front Service LED Display Screen

P8 Outdoor SMD​ Front Service LED Display Screen

  • Front Service LED Screen
  • Model: LLP-OSDP8MM
  • Pixels: 15,625 dots/sq.m
  • Protection Rating: IP65
  • Product description: P8 outdoor SMD​ front service LED display screen with special design on its 320mm x 320mm module, can be accessed from front or back side for maintenance.
  • INQUIRY

P8 Outdoor SMD Front Service LED Display Screen

This P8mm outdoor LED display screen panels are geared with front and back serviceable modules, which greatly solves the issue of limited space for installation. Basides, the display screen excels in image details, brightness and view angles. It is a perfect choice to be placed at shopping centers, highways, railway stations, airports, stadiums, etc.

Features:

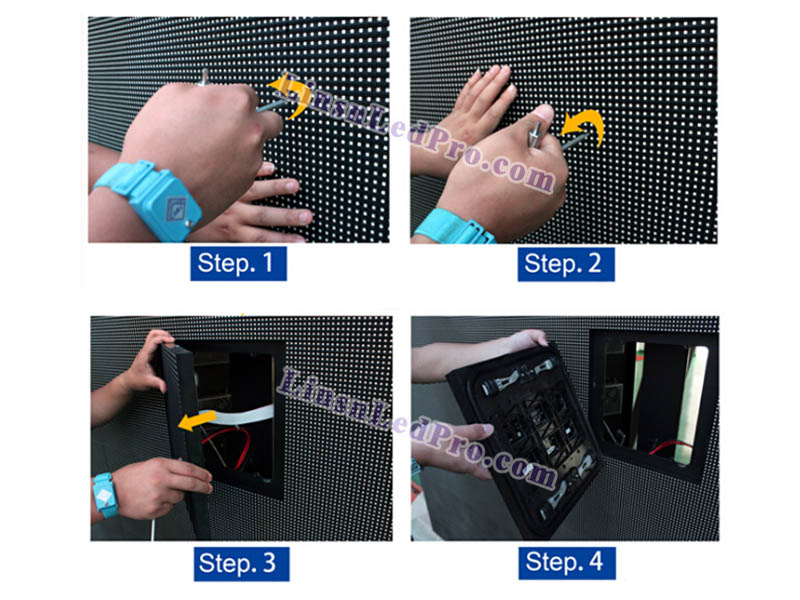

- Available in both front and rear access for servicing;
- Wide viewing angles and excellent color uniformity;
- Stable performance and great heat dissipation;
- Low Power consumption and long life span;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Synchronous control with PC or asynchronous mode without PC for small size screens;
- Brightness is adjustable manually or automatically against to light changing;
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- Can be controlled and monitored with camera at any time & anywhere via internet access;
- Online detecting and fault informing is optional with monitored card;
- Supports all windows operation systems-XP,7/8,Vista for its software;
- Supports LINSN and other popular control systems.

Specifications:

1 Pixel pitch
P8mm
2 Pixel density
15,625 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3535 3in1
4 LED module size (L*H)
320x 320mm
5 LED module resolution
40*40 pixels
6 LED panel size (L*H*D)
960*960*155mm or as needed
7 LED panel resolution
120*120 pixels
8 LED display screen panel weight
65KG/sq.m
9 LED display screen panel material
Cold rolled steel sheet
10 Brightness
≥6,800 nits/sq.m
11 Driving method
1/5 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
>8M
14 Refresh rate
>400Hz
15 Grey scale
≥8,192 levels
16 Display colors
>16.7M
17 Power consumption
Max.:1,000W/sq.m, Avg.:400W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP65/IP54
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc

28 Compliant standard
CE/UL/RoHS
