P10 SMD Outdoor Front Access LED Display Panel

P10 SMD Outdoor Front Access LED Display Panel

  • Front Serivce LED Screen
  • Model: LLP-OSDP10
  • Pixels: 10,000 dots/sq.m
  • View Angle: 140°H /140°V
  • Product description: P10 SMD outdoor front access LED display panel is specially created for installation requiring both front and back access for servincing, high resolution and brightness and wide view angles.
  • INQUIRY

P10 SMD Outdoor Front Access LED Display Panel

This robost P10 SMD outdoor front access LED display panel can perfectly solve the issue of limited space on front or rear side of the installation. Besides, it is geared with SMD335 LED lamps and 10000 pixels per square meter, which can present extra wide view angles and very clear images details at close viewing distances.

Features:

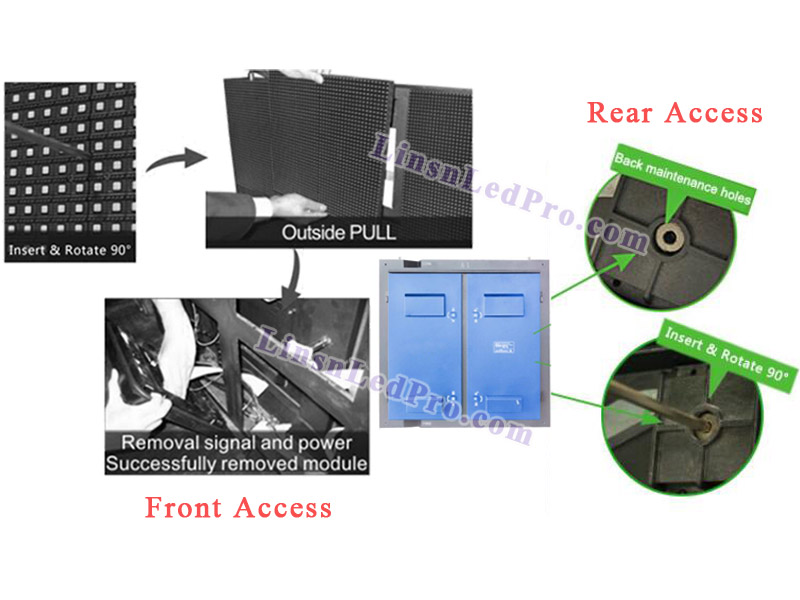

- Available in both front and rear maintenance;
- High brightness and contrast ratio;
- Large view angles and vivid colors;
- Stable performance and great heat dissipation;
- Low Power consumption and long life span;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Synchronous control with PC or asynchronous mode without PC for small size screens;
- Brightness is adjustable manually or automatically against to light changing;
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- Can be controlled and monitored with camera at any time & anywhere via internet access;
- Online detecting and fault informing is optional with monitored card;
- Supports all windows operation systems-2000,XP,7,8,Vista for its control software.


Specifications:

1 Pixel pitch
10mm
2 Pixel density
10,000 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3535, 3in1
4 LED module size (L*H)
320*320mm
5 LED module resolution
32*32 pixels
6 LED panel size (L*H*D)
960*960*155mm or as needed
7 LED panel resolution
96*96 pixels
8 LED display panel weight
65KG/sq.m
9 LED dislay panel material
Cold rolled steel sheet
10 Brightness
≥7,000 nits/sq.m
11 Driving method
1/4 scan
12 Viewing angle
145°H /145°V
13 Best viewing distance
>10M
14 Refresh rate
>600Hz
15 Grey scale
≥8,192 levels
16 Display colors
>16.7M
17 Power consumption
Max.:1,000W/sq.m, Avg.:400W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP65/IP54
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc

28 Compliant standard
CE/UL/RoHS
