  • P16 DIP Outdoor Front Access LED Screen Board
P16 DIP Outdoor Front Access LED Screen Board

P16 DIP Outdoor Front Access LED Screen Board

  • Front Serivce LED Screen
  • Model: LLP-ODDP16
  • Brightness ≥7,000 nits/sq.m
  • Protection Rating: IP65
  • Product description: P16 DIP outdoor front access LED screen board excels in brightness and contrast ratio. It is perfect for applications requiring front and rear maintenance.
  • INQUIRY

P16 DIP Outdoor Front Access LED Screen Board

P16 DIP outdoor front access LED screen board is a great choice for speical installation on servicing. It is widely placed at shopping centers, highways, railway stations, airports, stadiums, etc.

Features:

- High brightness and contrast ratio;

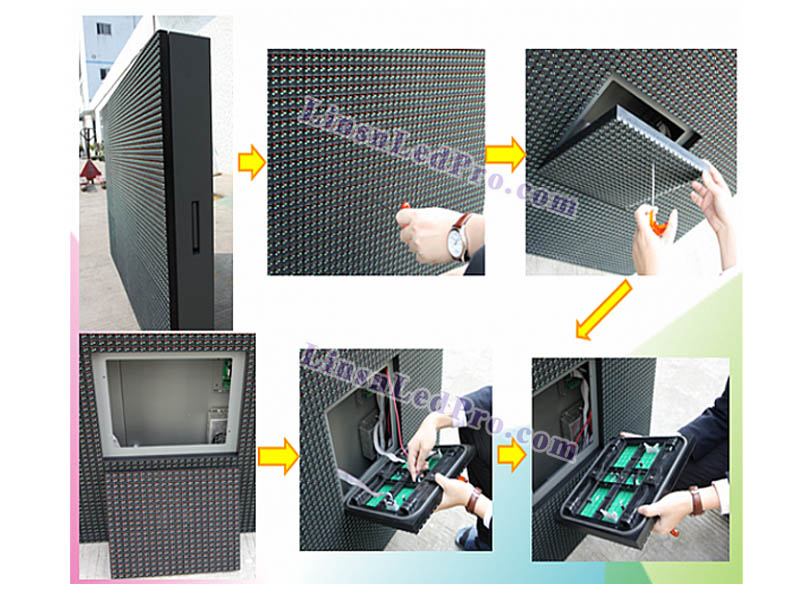

- Available in both front and rear maintenance;
- Stable performance and great heat dissipation;
- Low Power consumption and long life span ;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Synchronous control with PC or asynchronous mode without PC for small size screens;
- Brightness is adjustable manually or automatically against to light changing;
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- Can be controlled and monitored with camera at any time & anywhere via internet access;
- Online detecting and fault informing is optional with monitored card;
- Supports all windows operation systems-2000,XP,7,8,Vista for its control software.

Specifications:

1 Pixel pitch
16mm
2 Pixel density
3,906 pixels/sq.m
3 Pixel configuration
1R1G1B, DIP346
4 Module size (L*H)
320*320mm
5 Module resolution
20*20 pixels
6 LED panel size (L*H*D)
960*960*155mm or as needed
7 LED panel resolution
60*60 pixels
8 LED screen board panel weight
65KG/sq.m
9 LED screen board panel material
Cold rolled steel sheet
10 Brightness
≥7,500 nits/sq.m
11 Driving method
Static
12 Viewing angle
110°H /60°V
13 Best viewing distance
>16M
14 Refresh rate
>600Hz
15 Grey scale
≥8,192 levels
16 Display colors
>16.7M
17 Power consumption
Max.:1,000W/sq.m, Avg.:400W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP65/IP54
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc

28 Compliant standard
CE/UL/RoHS
