Outdoor P10 DIP Front Service LED Screen

Front Serivce LED Screen
Model: LLP-ODDP10
Application: Outdoor
Brightness: ≥7,500 nits/sq.m

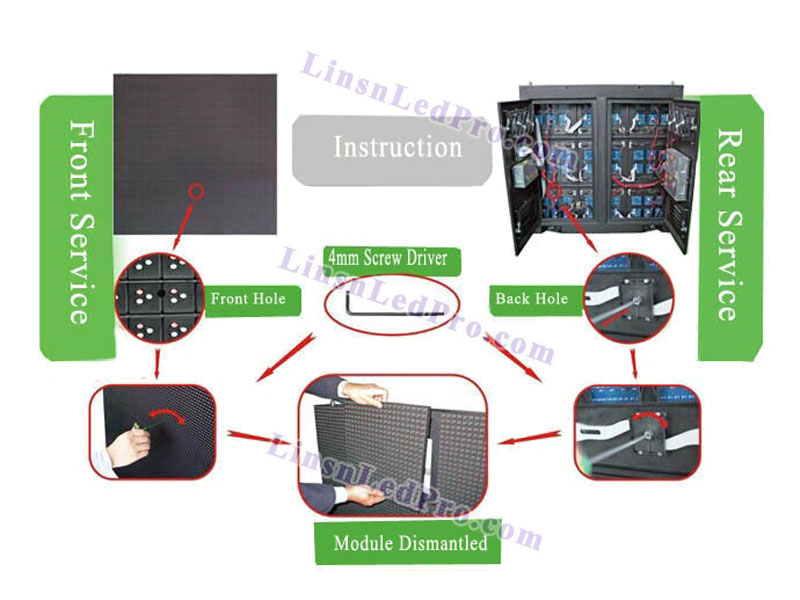

Product description: Outdoor P10 DIP front service LED screen with 320 x320mm module size can be dismantled with a special screwdriver for servicing at front side of the LED panel/cabinet, besides basic rear side maintena
INQUIRY

Outdoor P10 DIP Front Service LED Screen

P10 DIP full color LED screen equipped with speically designed modules is ideally suited for outdoor applications requiring both front and rear access for easy servicing.

Features:

- Ultra high resolution and brightness;

- Availalble in both front and rear maitenance;

- Stable performance and great heat dissipation;

- Easy installation and less maintenance;

- Low Power consumption and long life span;

- IP65/54 protection rating to perfectly work in all weather conditions;

- Synchronous control with PC or asynchronous mode without PC for small size screens;

- Brightness is adjustable manually or automatically against to light changing;

- All programs can be digitally edited and played in a loop automatically on the timetable;

- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);

- Can be controlled and monitored with camera at any time & anywhere via internet access;

- Online detecting and fault informing is optional with monitored card;

- Supports all windows operation systems-XP7/8/Vista for its control software;

- Supports LINSN and other popular control systems.

Specifications:

1	Pixel pitch	10mm
2	Pixel density	10,000 pixels/sq.m
3	Pixel configuration	1R1G1B, DIP346
4	LED module size (L*H)	320*320mm
5	LED module resolution	32*32 pixels
6	LED cabinet size (LHD)	960960155mm or as needed
7	LED cabinet resolution	96*96 pixels
8	LED screen cabinet weight	65 KG/sq.m
9	LED screen cabinet material	Cold rolled steel sheet
10	Brightness	≥7,500 nits/sq.m
11	Driving method	1/4 scan
12	Viewing angle	110°H /60°V
13	Best viewing distance	>10M
14	Refresh rate	>600Hz
15	Grey scale	≥8,192 levels
16	Display colors	>16.7M
17	Power consumption	Max.:1,000W/sq.m, Avg.:400W/sq.m
18	Input voltage	110~230V/AC (±10%)
19	Input power frequency	50/ 60Hz
20	IP rating (front/rear)	IP65/IP54
21	Operating environment	Temperature: -20°C~+50°C, Humidity: 10%~95%
22	Storage environment	Temperature:-40-50°C, Humidity: 10-90%
23	Life span (50% brightness)	≥100,000 hours
24	Control system	LINSN or other popular control systems
25	Transmission distance	Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26	Operating system	Windows XP/Win7//8/Vista
27	Video input/with video processor: Rgblink,Vdwall,Magnimage,etc	VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28	Compliant standard	CE/UL/RoHS
