P20 SMD Outdoor Flexible LED Curtain Wall

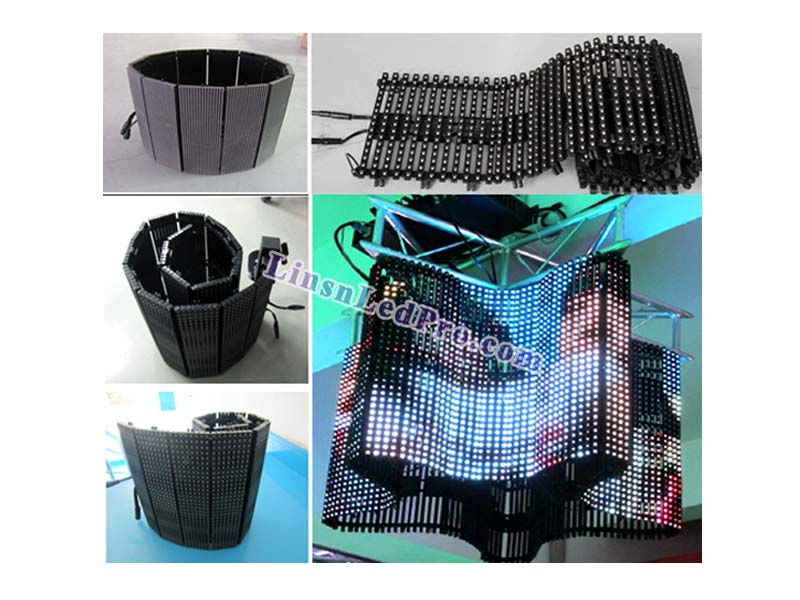

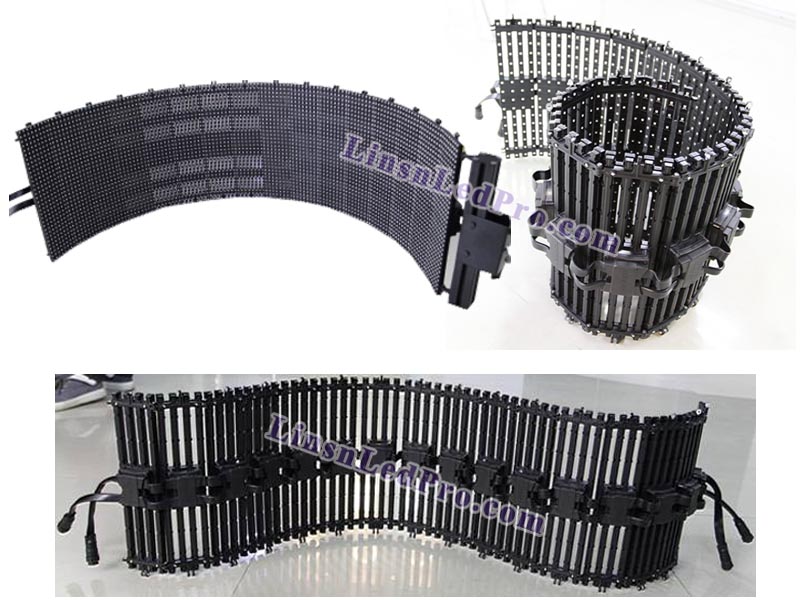

P20mm SMD outdoor LED curtain wall adopts ultra flexible materials with light 320mm x 1280mm x 38mm panel size. It can be installed as S, curved and circular shapes. It can be curved both horizontally and vertically, which pefectly meets the creative needs specially for stage application.
Features:
- Super flexible---flat, curved or circular setting can all be easily done;
- High transparency: 40%, high brightness: 2,500~4,000 nits for option;
- Modular design enables in or out curved shape in a radius of 0.5m minimum;
- Buckle styled structure to well simplify traditional fixing with screws;
- Ultra light and slim---4.5KG/panel and 38mm depth;
- Speedy setup and tear down, easy to be boxed and shipped;
- IP66 protection rating to perfectly operate in various environments;
- Electricity saving and superb heat dissipation;

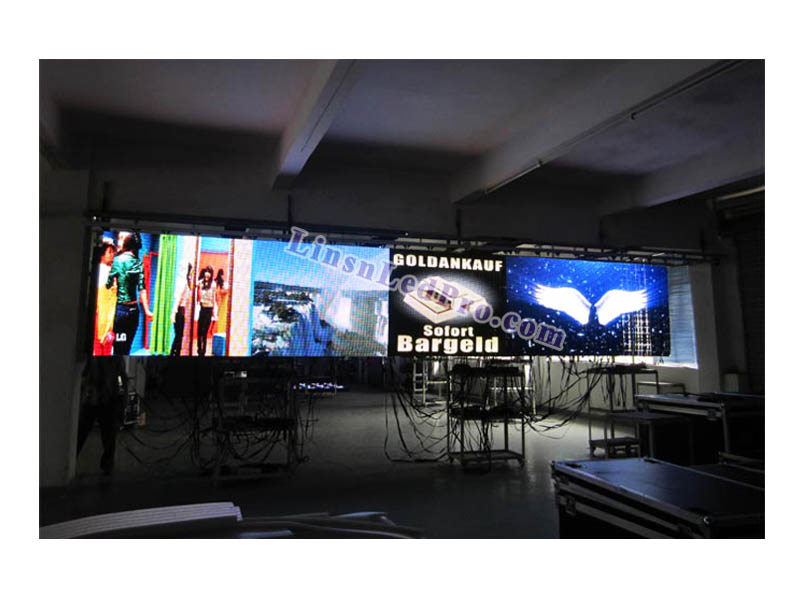

- Ideally suited for staging, clubbing, ceiling and other creative events.
Specifications:
1 |
Pixel pitch |
20mm |
2 |
Pixel density |
2,500 pixels/sq.m |
3 |
Pixel configuration |
1R1G1B, SMD3535, 3in1 |
4 |
LED module size (L*H) |
32*80*18mm |
5 |
LED module resolution |
16*4 pixels |
6 |
LED panel size (L*H*D) |
320*1280*38mm |
7 |
LED panel resolution |
16*64 pixels |
8 |
LED curtain wall panel weight |
4.5KG/piece |
9 |
LED curtain wall panel material |
Plastic+aluminum |
10 |
Brightness |
2500~400nits/sq.m for option |
11 |
Driving method |
Static |
12 |
Viewing angle |
140°H /140°V |
13 |
Best viewing distance |
>20M |
14 |
Refresh rate |
≥1,200Hz |
15 |
Grey scale |
≥8,196 levels |
16 |
Display colors |
>16.7M |
17 |
Power consumption |
Max.: 520W/sq.m, Avg.: 208W/sq.m |
18 |
Input voltage |
110~230V/AC (±10%) |
19 |
Input power frequency |
50/ 60Hz |
20 |
IP rating (front/rear) |
IP66 |
21 |
Operating environment |
Temperature: -20°C~+50°C, Humidity: 10%~95% |
22 |
Storage environment |
Temperature:-40-50°C, Humidity: 10-90% |
23 |
Life span (50% brightness) |
≥80,000 hours |
24 |
Control system |
LINSN or other popular control systems |
25 |
Transmission distance |
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m |
26 |
Operating system |
Windows XP/Win7/8/Vista |
27 |
Video input/with video processor: Rgblink,Vdwall,Magnimage,etc |
VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc |
28 |
Compliant standard |
CE/UL/RoHS |
