  • P12.5 Indoor Mesh LED Display Screen
  • P12.5 Indoor Mesh LED Display Screen
P12.5 Indoor Mesh LED Display ScreenP12.5 Indoor Mesh LED Display Screen

P12.5 Indoor Mesh LED Display Screen

  • LED Mesh Screen
  • Model: LLP-IMSP12.5MM
  • +- 10 Degree Angle Adjustable
  • Transparency: >25%

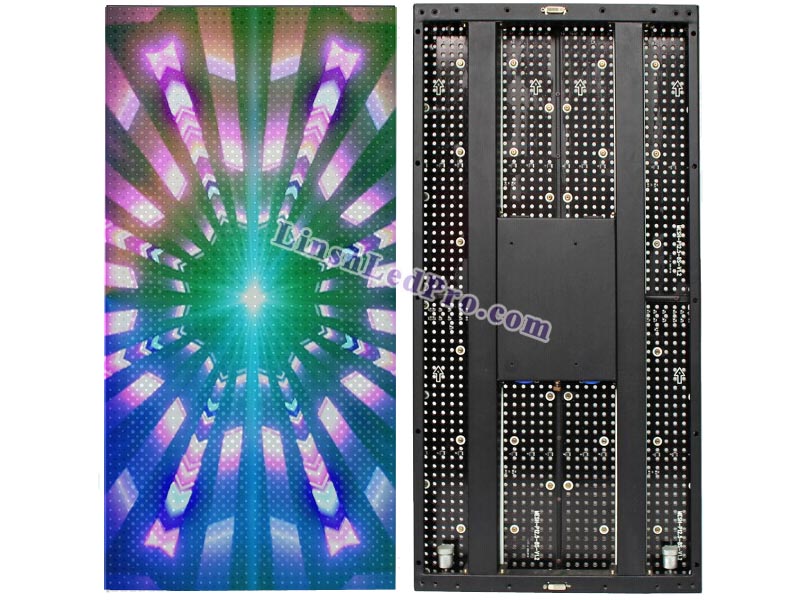

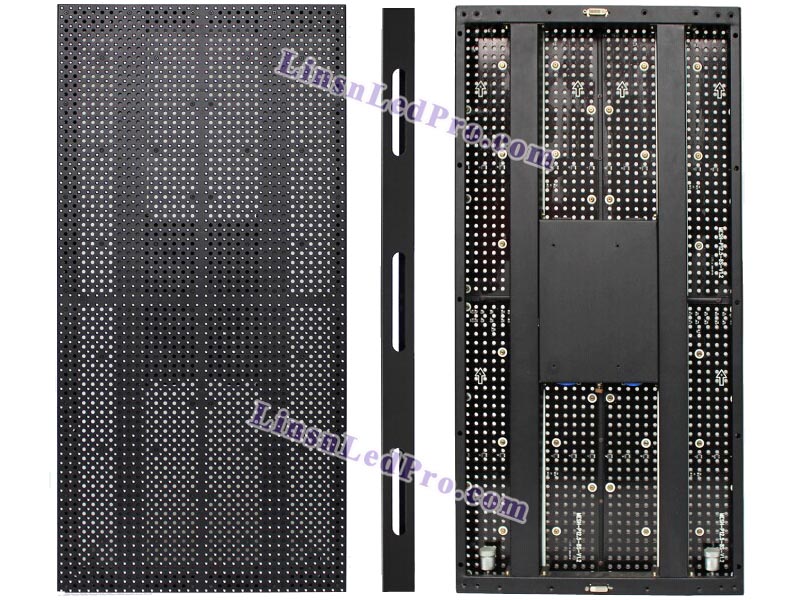

  • Product description: P12.5 indoor mesh LED display screen is geared with 400mm x 800mm x 60mm panel size. Each LED mesh panel consists of 4 modules and can produces 32 x 64 dot resolution.

P12.5 Indoor Mesh LED Display Screen

P12.5 indoor mesh LED display screen is specially created to generate backgrounds for concerts, building walls, nightclubs, dance halls,etc. It can receive DVI, VGA, HDMI, S-video, composite, YUV and other input signals. P12.5 LED curtain can play video, graphic and image freely and play various information in real-time and synchronous mode.


1. Super thin and light cabinet, extremely easy to setup and tear down;
2. Uniform and vivid colors, high refresh rate, anti-static, dust proof, good heat dissipation;
3. The cabinet can be adjusted with a +- 10 degree angle;
4. Light transmittance rate >25%;
5. Dot by dot calibration enables excellent imagine effect after years of using;
6. Fanless design enables noiseless environment;
7. Aluminum or iron mesh cabinet, cabinet color is optional;
8. Ideally suited for side or sky screen for stage.


1 Pixel pitch
2 Pixel density
6,400 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3528 3in1
4 LED module size (L*H)
5 LED module resolution
16*32 pixels
6 LED panel size (L*H*D)
7 LED panel resolution
32*64 pixels
8 LED mesh panel weight
8KG/piece with aluminum alloy
9 LED mesh panel material
Aluminum alloy or iron as requested
10 Brightness
≥800 nits/sq.m
11 Driving method
1/4 or 1/8 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
14 Refresh rate
15 Grey scale
≥4,096 levels
16 Display colors
17 Power consumption
Max.:680W/sq.m, Avg.:272W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7/8/Vista

Video input/with video processor:


28 Compliant standard
