  • Outdoor P10.41 SMD LED Curtain Display
  • Outdoor P10.41 SMD LED Curtain Display
Outdoor P10.41 SMD LED Curtain DisplayOutdoor P10.41 SMD LED Curtain Display

Outdoor P10.41 SMD LED Curtain Display

  • LED Curtain Display
  • LLP: OSCP10.41MM
  • Light transmittance rate >12%;
  • Protection Rating: IP65/54
  • Product description: Outdoor P10.41 SMD LED curtain display equips with light 500 x1000 x 75mm panel size and waterproof SMD3535 LED lamps, which is perfect fit for both indoor and outdoor stage and rental applications.

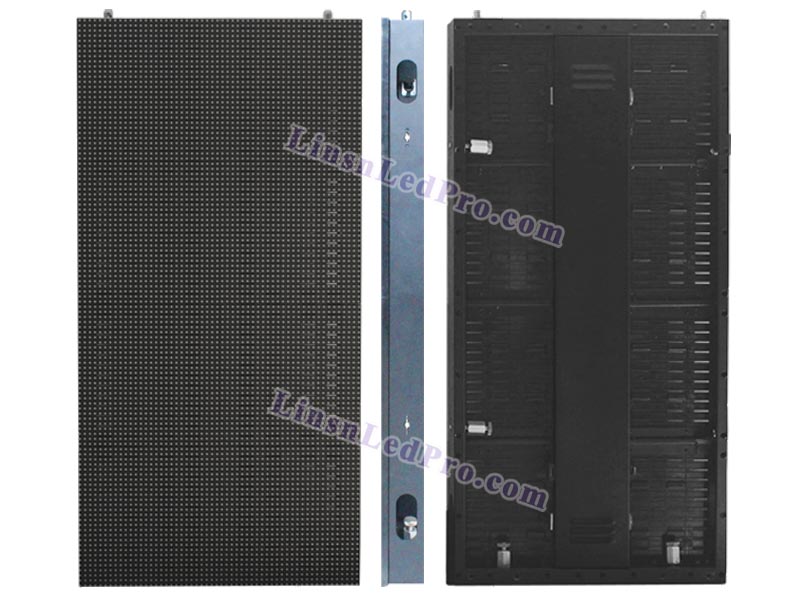

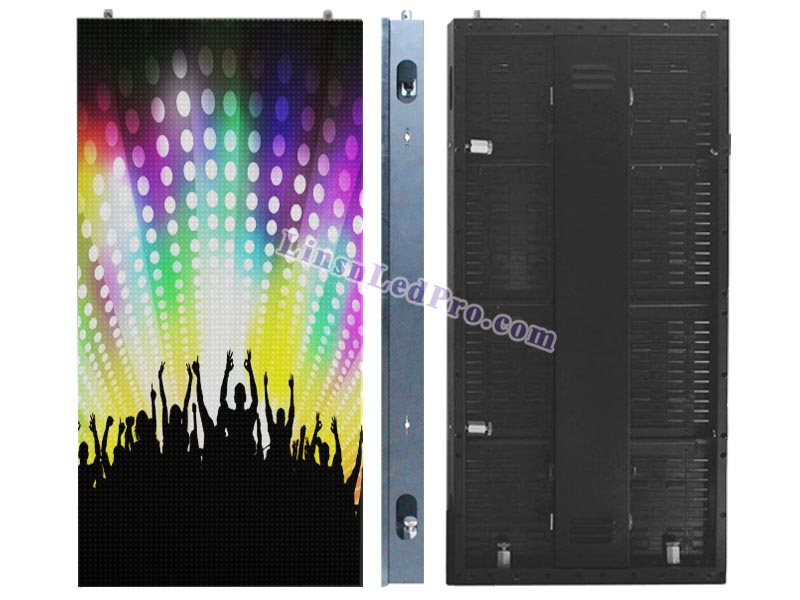

Outdoor P10.41 SMD LED Curtain Display

Specially designed for the rental and staging market, the P10.41mm LED curtain display panels are adopted with outdoor SMD technology offering rental companies great flexibility to use at both indoors and outdoors requiring small and big range viewing distances even in bright daylight conditions. Thanks to its light weight and quick installation, it allows users to easily build up large dynamic video walls or backdrops with industry leading image quality for different kinds of stages, no matter straight or curved shape, as well as side screens on lightweight trusses. Furthermore, it's also ideally suited for ceiling screens


1. Super thin and light cabinet, extremely easy to setup and tear down;
2. High brightness, high refresh rate, wide viewing angle;
3. IP65/54, perfect for both indoor and outdoor events;
4. Light transmittance rate >12%;
5. Dot by dot calibration enables excellent imagine effect after years of using;
6. Fanless design enables noiseless environment.


1 Pixel pitch
2 Pixel density
9,216 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3535, 3in1
4 LED module size (L*H)
5 LED module resolution
24*24 pixels
6 LED panel size (L*H*D)
7 LED panel resolution
48*96 pixels
8 LED curtain panel weight
9 LED mesh panel material
Aluminum alloy
10 Brightness
≥5,500 nits/sq.m
11 Driving method
1/4 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
14 Refresh rate
15 Grey scale
≥8,196 levels
16 Display colors
17 Power consumption
Max.:890W/sq.m, Avg.:356W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7/8/Vista

Video input/with video processor:


28 Compliant standard
