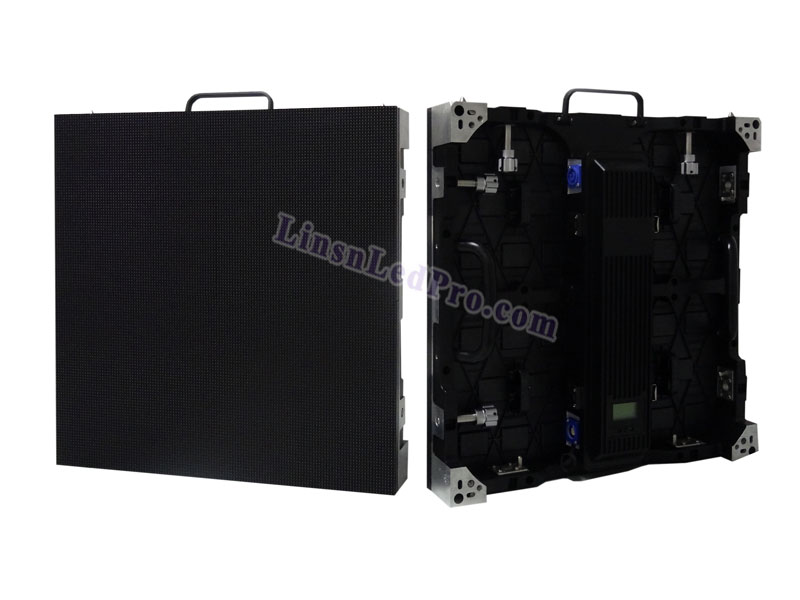

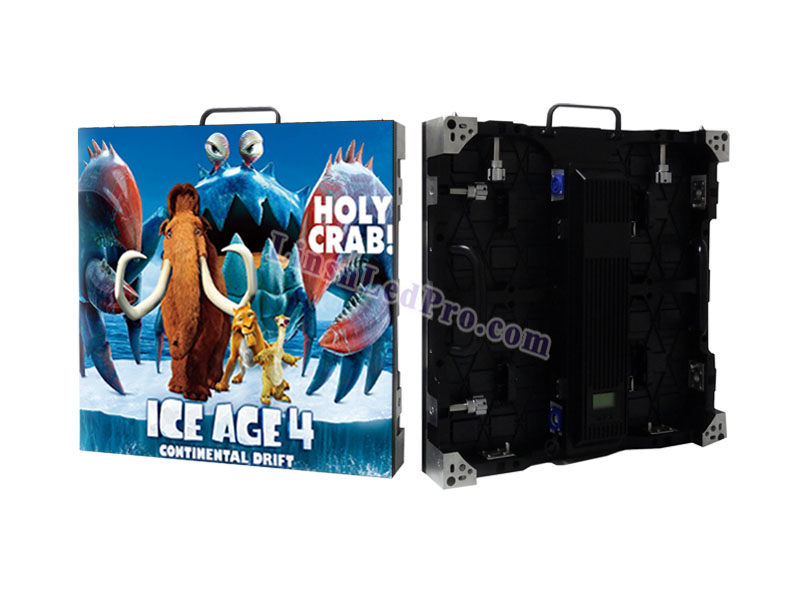

P2.98 HD Indoor Rental LED Display Panel

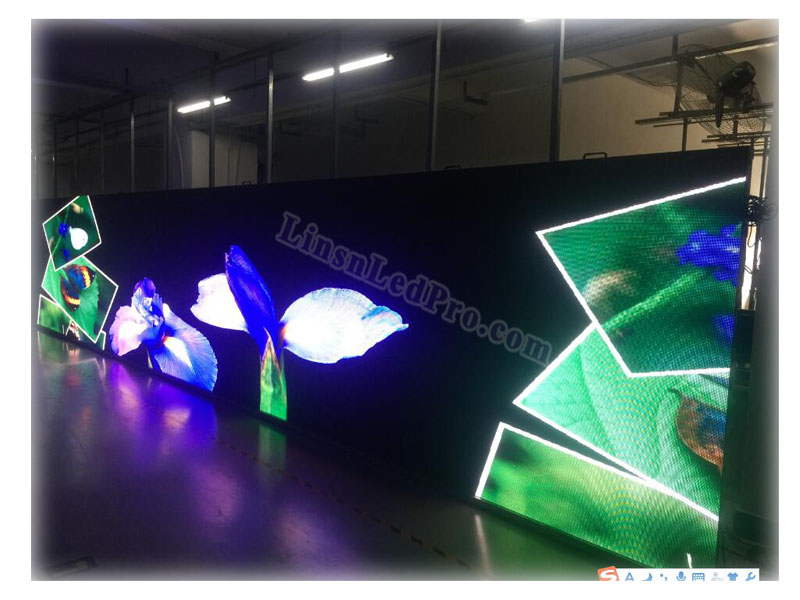

P2.98 HD Indoor rental LED display panel developed by LINSN LED Pro can produce 168 x 168 pixels per piece. P2.98mm is a perfect choice for indoor stage and rental applications requiring ultra high definition at an extremely close viewing distance, unparalleled image quality, easy maintenance at both back and rear sides, etc.
Features:
- Super high resolution-112,560 pixels/square meter;
- Die casting aluminum, seamless connection;
- Ultra slim and light, only 7KG/panel;
- Speedy setup and tear down with fast lock;
- Fanless design enables silent operation;

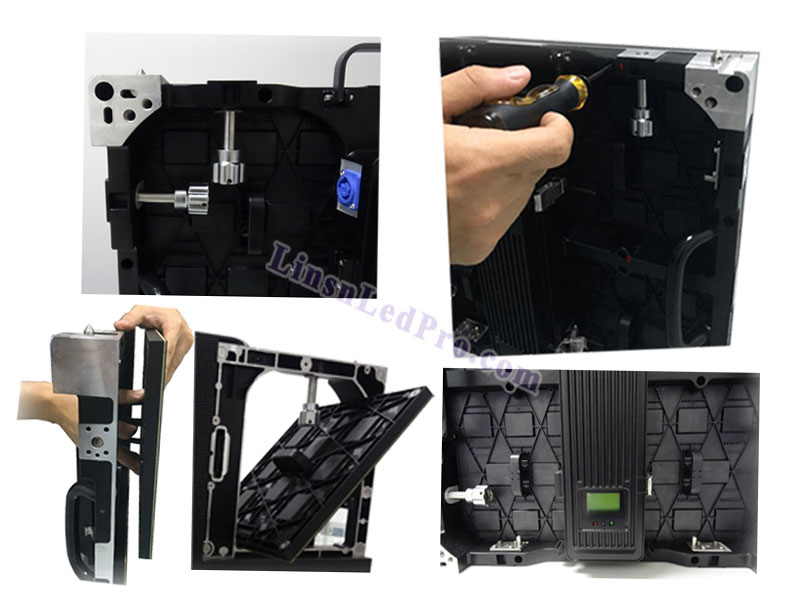

- Magnetic module makes it much easier for serving;
- Availalble in both back and front maintenance;
- Black LEDs to produce more vivid and richer colors;
- High refresh rate and grey level- up to 3840Hz, 16 bit;
- Good protection against dust, moisture, static, etc;
- Excellent heat dissipation and low power consumption;
- Optional LCD panel for cabinet backside design, customized company name and LOGO for easy advertising. Meanwhile, LCD module can display screen temperature, humidity,system voltage, cumulative operation time and starting time for easy supervision.
Specifications:
| 1 |
Pixel pitch |
2.98mm |
| 2 |
Pixel density |
112,560 pixels/sq.m |
| 3 |
Pixel configuration |
1R1G1B, SMD1515 3in1 |
| 4 |
LED podule size (L*H) |
250*250mm |
| 5 |
LED module resolution |
84*84 pixels |
| 6 |
LED panel size (L*H*D) |
500*500*80mm |
| 7 |
LED panel resolution |
168*168 pixels |
| 8 |
LED display panel weight |
7.5KG/piece |
| 9 |
LED display panel material |
Diecasting aluminum |
| 10 |
Brightness |
≥1,400 nits/sq.m |
| 11 |
Driving method |
1/14 scan |
| 12 |
Viewing angle |
140°H /140°V |
| 13 |
Best viewing distance |
>2.9M |
| 14 |
Refresh rate |
≥1,920Hz, up to 3840Hz |
| 15 |
Grey scale |
≥4,096 levels, 14bit or 16 bit |
| 16 |
Display colors |
>16.7M |
| 17 |
Power consumption |
Max.:1,100W/sq.m, Avg.:440W/sq.m |
| 18 |
Input voltage |
110~230V/AC (±10%) |
| 19 |
Input power frequency |
50/ 60Hz |
| 20 |
IP rating (front/rear) |
IP43 |
| 21 |
Operating environment |
Temperature: -20°C~+50°C, Humidity: 10%~95% |
| 22 |
Storage environment |
Temperature:-40-50°C, Humidity: 10-90% |
| 23 |
Life span (50% brightness) |
≥100,000 hours |
| 24 |
Control system |
LINSN or other popular control systems |
| 25 |
Transmission distance |
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m |
| 26 |
Operating system |
Windows XP/Win7//8/Vista |
| 27 |
Video input/with video processor: Rgblink,Vdwall,Magnimage,etc |
VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc |
| 28 |
Compliant standard |
CE/UL/RoHS |
