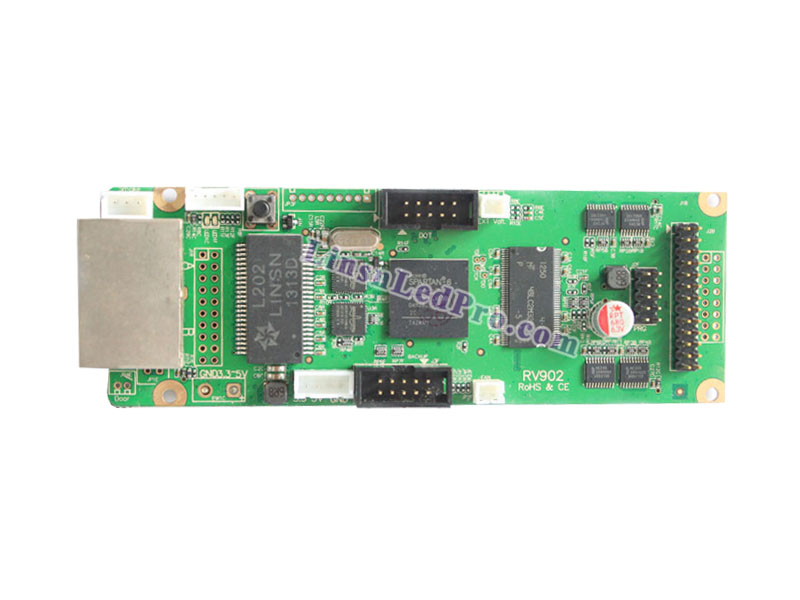

LINSN RV902H LED Board Thin Receiver Card

Compared with RV901H, RV902H is of small size and with different output interfaces. RV902H has all other functions of RV802/806. Besides, RV902H is added with the following functionality:

1. Support 12-bit HDMI colors input (required the 9th generation sending card)
2. Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction
3. Using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue)
4. Supports single-card color space conversion
5. Supports hot backup with dual receiver cards for demanding performances screen
6. Support program replication
7. Support configuration file readback
8. Supports pixel fault detection (requires a dedicated chip support)
9. Support network cable BER test
10. Support flat cable fault detection
11. Temperature monitoring
12. Support the cabinet-door monitoring (open/close)
13. Humidity monitoring (humidity sensor sold separately)
14. Three lines Voltage monitoring: one for the system, two for cabinet power
15. Two lines fan-speed monitoring
16. Smoke monitoring (smoke module sold separately)
17. In line with EU standards CE-EMC
