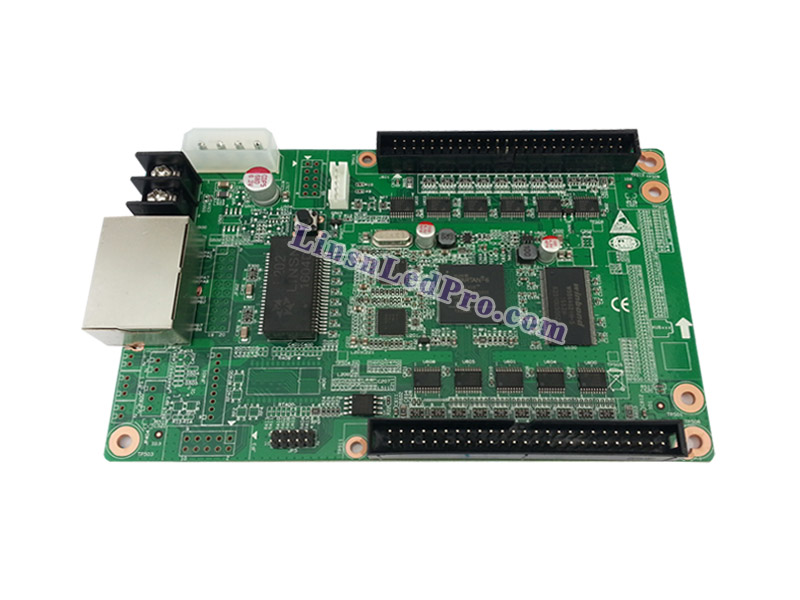

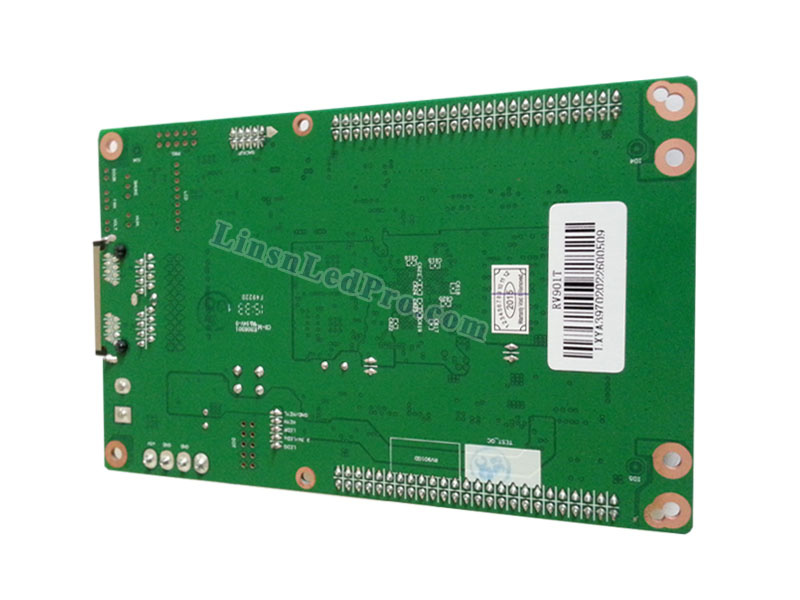

LINSN RV901T Full Color LED Display Receiving Card
LINSN RV901T can work with all receiving cards such as LXY801/RV801/RV801D/RV801-D/RV801F/RV901/RV901H. The difference between RV901H and RV901T is that RV90T is without LCD, smoke, humidity, door and fan detecting interfaces.
Features:
1. With 18 signal processing, it can maximum support RGB 18 each (260,000), gray 1024 x 256 pixels;
2. Single card can maximum support 1024 single point chromaticity correction;
3. Supports single-card color space conversion;
4. Supports configuration file read-back;
5. Supports program replication;
6. Supports dual hot backup receiver card for demanding performances screen;
7. Supports pixel fault detection (requires a dedicated chip support);
8. Supports network cable BER test;
9. Supports cable fault detection;
10. Supports the cabinet door switch monitoring;
11. Two fan speed monitoring;
12. Voltage monitoring of the 13 three-way all the way for the system, two external box power;
13. Temperature monitoring;
14. Humidity monitor (need to buy humidity sensor separately);
15. Smoke monitor (need to buy smoke module separately);
16. With EU standards- CE-EMC.
Functional Specification:
1. Compatible with dual mode of RJ45-big and small net ports (small port: upward, big port: down)-RV901H, RV907H;
2. The receiving card carries integrated monitoring (voltage, temperature, fan speed, cabinet door switching status), it can plug wire to be used directly with free function card;
3. Ready to use for LCD driver with LOGO display and monitoring data, dual mode of computer display monitoring data;
4. Full range of models are EMC-A compliant, with accessories, it can reach to EMC-B (RV901H, RV908H);
5. Double card backup function.
Additional Cost Needed:
1. A more stringent EMC-B, the industry's only receiving card;
2. On-board humidity detection, the industry's only receiving card.
