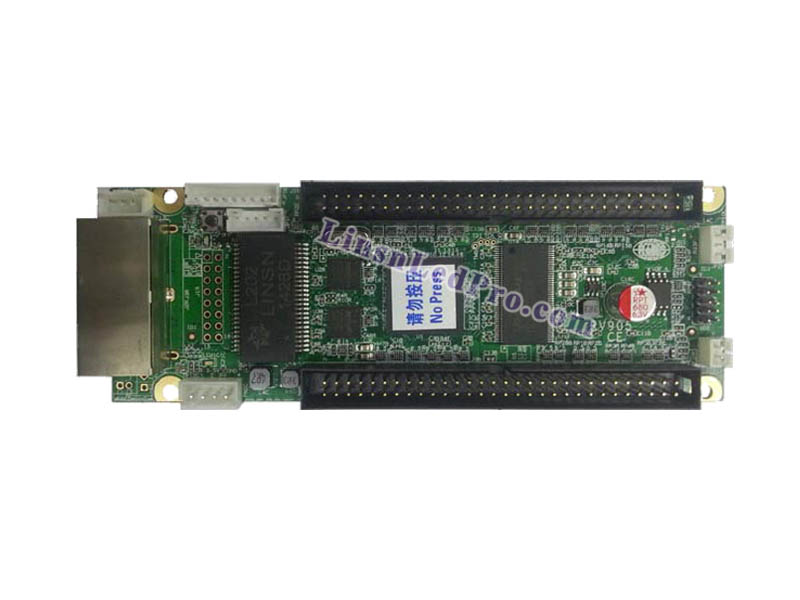

LINSN RV905H Full Color LED Wall Receiving Card

LINSN RV905H has the following features:

1. Compatible with RV801, it has all the features of RV801D
2. Small size (479mm X 1365mm), mounting holes are same with RV802
3. Two output interfaces can directly drive module (save hub card)
4. Each of the 2 interfaces has up to 14 groups parallel-data; total 28 groups of parallel data interface to achieve higher refresh rate
5. Each interface has VCC pin to supply power for control system from led module. No need to get extra power supply for control system.
6. support 12-bit HDMI colors input (required the 9th generation sending card)
7. Using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue)
8. Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction
9. Supports single-card color space conversion
10. Support configuration file readback
11. Temperature monitoring
12. Humidity monitoring (humidity sensor sold separately)
13. In line with EU RoHS standards
14. In line with EU standards CE-EMC
