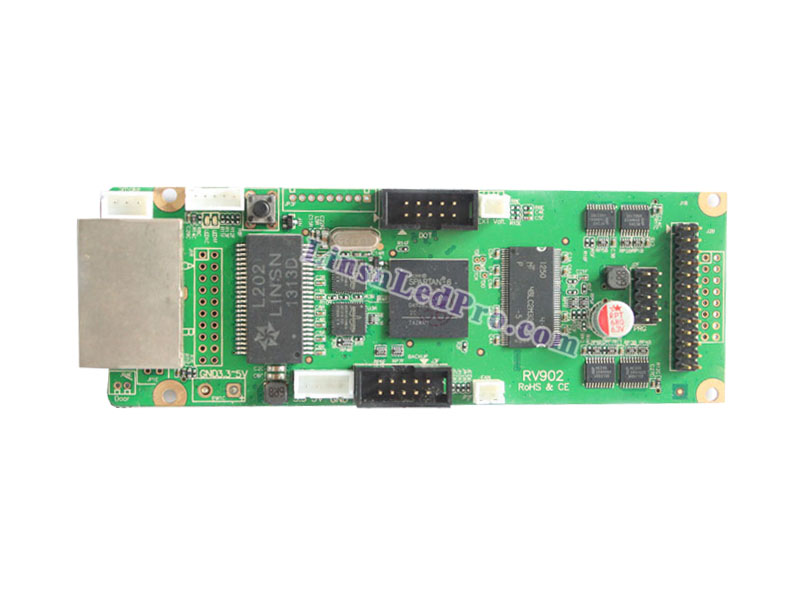

LINSN RV902 RGB LED Curtain Receiving Card

LINSN RV902 RGB LED Curtain Receiving Card

  • Model: LINSN RV902
  • In Stock for Sale
  • Can Be Ordered Online
  • DHL Worldwide Shipping
  • Product description: LINSN RV902 is upgraded based on the 8th generation system- RV802/RV806. Designed specifically for LED curtain/lighting decoration that requires small size for easy installation.
  • INQUIRY

LINSN RV902 RGB LED Curtain Receiving Card

Compared with RV901, LINSN RV902 is of small size and with different output interfaces. RV902 has all other functions of RV802/806, besides, RV902 is added with the following functionality:

1. Support 12-bit HDMI colors input (required the 9th generation sending card)
2. Using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue)
3. Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction
4. Supports single-card color space conversion
5. Support configuration file readback
6. Support program replication
7. Supports hot backup with dual receiver cards for demanding performances screen
8. Supports pixel fault detection (requires a dedicated chip support)
9. Support network cable BER test
10. Support flat cable fault detection
11. Support the cabinet-door monitoring (open/close)
12. Two lines fan-speed monitoring
13. Three lines Voltage monitoring: one for the system, two for cabinet power
14. Temperature monitoring
15. Humidity monitoring (humidity sensor sold separately)
16. Smoke monitoring (smoke module sold separately)
17. In line with EU standards CE-EMC
