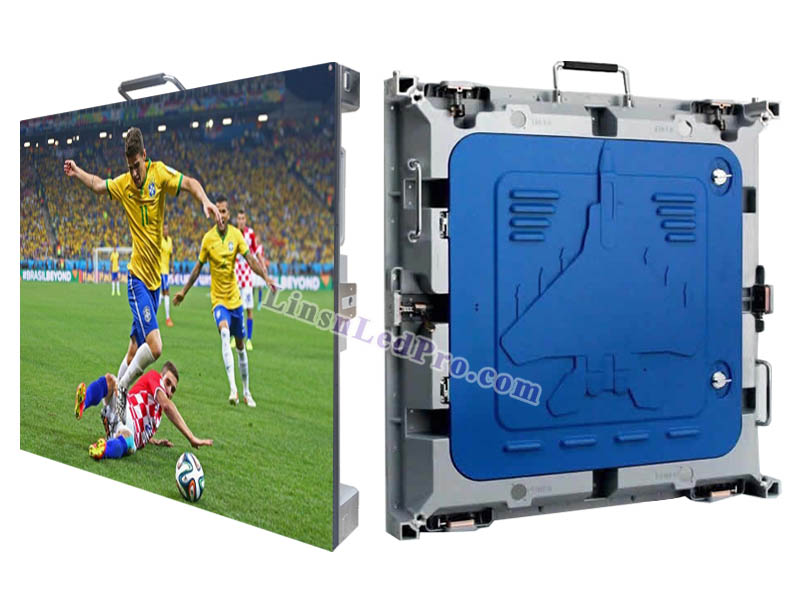

P10 Outdoor SMD Rental LED Display System
P10 Outdoor SMD rental LED display system is geared with 10,000 pixels per square meter and adopted with high brightness and waterproof SMD3535 LED lamps, which is a perfect solution for both indoor and outdoor events requiring high resolution at medium and large scale viewing distances.
Features:
- Utra-high definition, 10,000 pixels per SQM;
- Superb white balance and wide view angles;
- High brightness and contrast ratio;

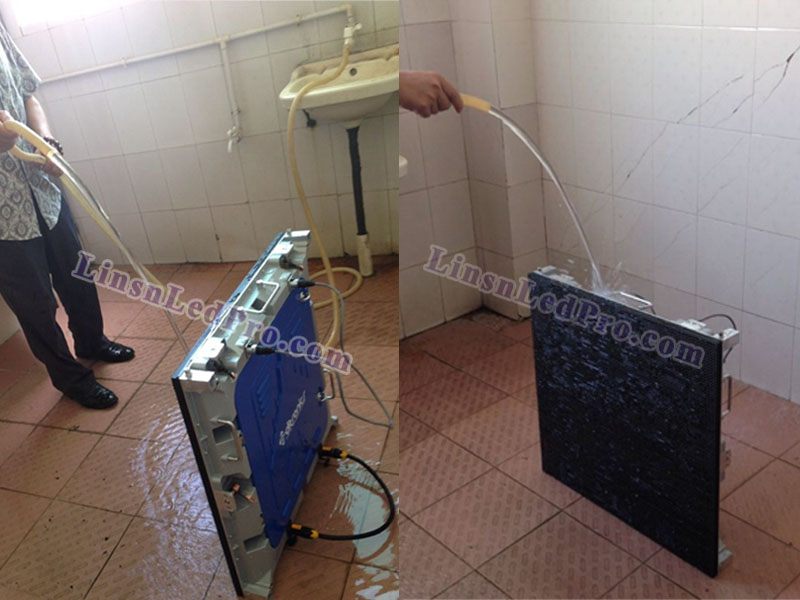

- IP65 rating, perfect for indoor & outdoor uses;
- Die-casting aluminum material, excellent heat dissipation;
- Exquisite appearance and seamless connection;
- Light weight, only 13.5KG, easy set up and tear down;
- The LED cabinet color can be custom as requested;
- The modules can be quickly dismantled for servicing;
- Support LINSN and other popular LED control systems.
Specifications:
| 1 |
Pixel pitch |
10mm |
| 2 |
Pixel density |
10,000 pixels/sq.m |
| 3 |
Pixel configuration |
1R1G1B, SMD3535, 3in1 |
| 4 |

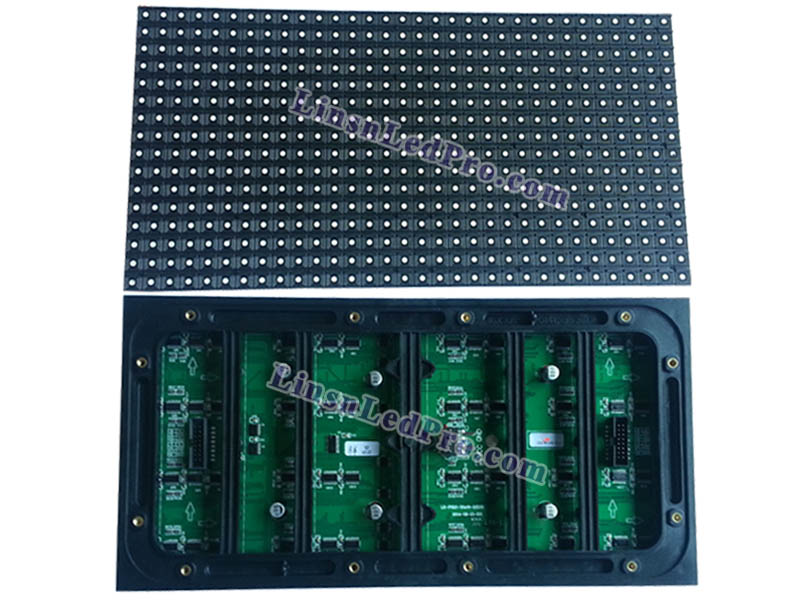

LED module size (L*H) |
320*160mm |
| 5 |
LED module resolution |
32*16 pixels |
| 6 |
LED panel size (L*H*D) |
640*640*80mm |
| 7 |
LED panel resolution |
64*64 pixels |
| 8 |
LED display system panel weight |
13.50KG/piece |
| 9 |
P10 LED system panel material |
Diecasting Aluminum |
| 10 |
Brightness |
≥6,000 nits/sq.m |
| 11 |
Driving method |
1/4 scan |
| 12 |
Viewing angle |
140°H /140°V |
| 13 |
Best viewing distance |
>10M |
| 14 |
Refresh rate |
≥960Hz |
| 15 |
Grey scale |
≥8,196 levels |
| 16 |
Display colors |
>16.7M |
| 17 |
Power consumption |
Max.:980W/sq.m, Avg.:392W/sq.m |
| 18 |
Input voltage |
110~230V/AC (±10%) |
| 19 |
Input power frequency |
50/ 60Hz |
| 20 |
IP rating (front/rear) |
IP65/54 |
| 21 |
Operating environment |
Temperature: -20°C~+50°C, Humidity: 10%~95% |
| 22 |
Storage environment |
Temperature:-40-50°C, Humidity: 10-90% |
| 23 |
Life span (50% brightness) |
≥100,000 hours |
| 24 |
Control system |
LINSN or other popular control systems |
| 25 |
Transmission distance |
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m |
| 26 |
Operating system |
Windows XP/Win7//8/Vista |
| 27 |
Video input/with video processor: Rgblink,Vdwall,Magnimage,etc |
VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc |
| 28 |
Compliant standard |
CE/UL/RoHS |
