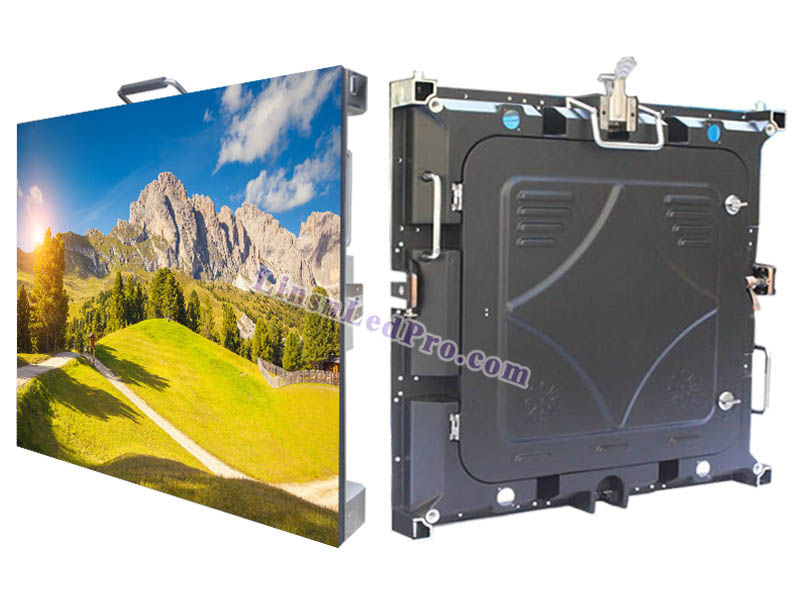

P6 SMD Outdoor Rental LED Display Wall
P6 SMD outdoor rental LED display wall is geared with 27,777 pixels per square meter, and is adopted with waterproof and high brightness SMD3535 LED lamps. It is one of the most cost effective solutions for both indoor and outdoor events requiring clear image details at close and medium scale viewing distances.
Features:
- Utra-high definition, 27,777 pixels per SQM;
- Superb white balance and wide view angles;
- High brightness and contrast ratio;

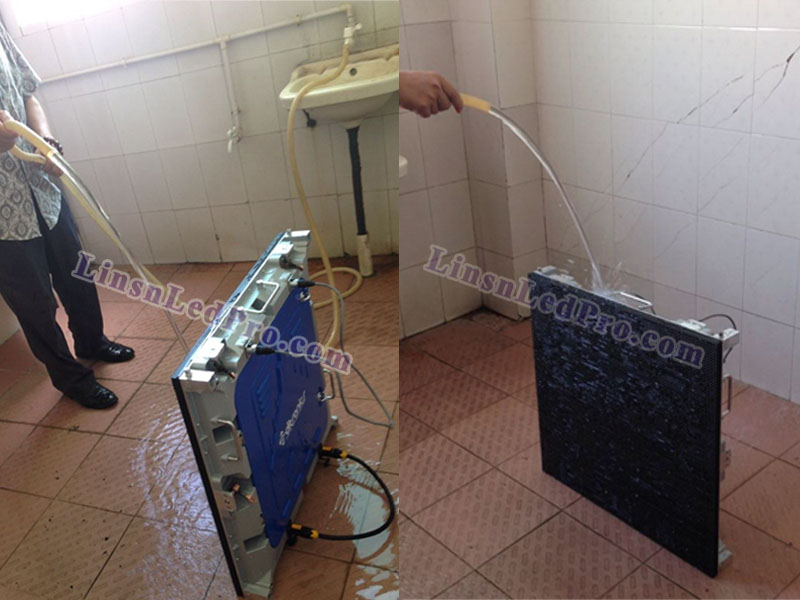

- IP65 rating, perfect for indoor & outdoor uses;
- Die-casting aluminum material, excellent heat dissipation;
- Exquisite appearance and seamless connection;
- Light weight, only 11KG, easy set up and tear down;
- The LED cabinet color can be custom as requested;
- The modules can be quickly dismantled for servicing;
- Support LINSN and other popular LED control systems.
Specifications:
| 1 |
Pixel pitch |
6mm |
| 2 |
Pixel density |
27,777 pixels/sq.m |
| 3 |
Pixel configuration |
1R1G1B, SMD3535 3in1 |
| 4 |
LED module size (L*H) |
192*192mm |
| 5 |
LED module resolution |
32*32 pixels |
| 6 |
LED panel size (L*H*D) |
576*576*80mm |
| 7 |
LED panel resolution |
96*96 pixels |
| 8 |
LED display wall panel weight |
11KG/piece |
| 9 |
LED display wall panel material |
Diecasting Aluminum |
| 10 |
Brightness |
≥6,500 nits/sq.m |
| 11 |
Driving method |
1/8 scan |
| 12 |
Viewing angle |
140°H /140°V |
| 13 |
Best viewing distance |
>6M |
| 14 |
Refresh rate |
≥900Hz |
| 15 |
Grey scale |
≥8,196 levels |
| 16 |
Display colors |
>16.7M |
| 17 |
Power consumption |
Max.:980W/sq.m, Avg.:392W/sq.m |
| 18 |
Input voltage |
110~230V/AC (±10%) |
| 19 |
Input power frequency |
50/ 60Hz |
| 20 |
IP rating (front/rear) |
IP65/54 |
| 21 |
Operating environment |
Temperature: -20°C~+50°C, Humidity: 10%~95% |
| 22 |
Storage environment |
Temperature:-40-50°C, Humidity: 10-90% |
| 23 |
Life span (50% brightness) |
≥100,000 hours |
| 24 |
Control system |
LINSN or other popular control systems |
| 25 |
Transmission distance |
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m |
| 26 |
Operating system |
Windows XP/Win7//8/Vista |
| 27 |
Video input/with video processor: Rgblink,Vdwall,Magnimage,etc |
VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc |
| 28 |
Compliant standard |
CE/UL/RoHS |
