P8 SMD Outdoor Rental LED Display Board

Rental LED Display
Model: LLP-ORP8MM
Diecasting Aluminum Panel
Protection Rating: IP65/54
Product description: P8 SMD outdoor rental LED display board is equipped with 640x640x80mm diecasting aliumnium panel size. Each LED board panel can produce 80x80 dot resolution with high brightness for outdoor applicati
INQUIRY

P8 SMD Outdoor Rental LED Display Board

P8 SMD outdoor rental LED display board is geared with top quality SMD3535 LED lamps, and it is highly weather resistent, which is a perfect choice for both indoor and outdoor events requiring high resolution at close and large scale viewing distances.

Features:

- Utra-high definition, 15,625 pixels per SQM;
- Superb white balance and wide view angles;
- High brightness and contrast ratio;

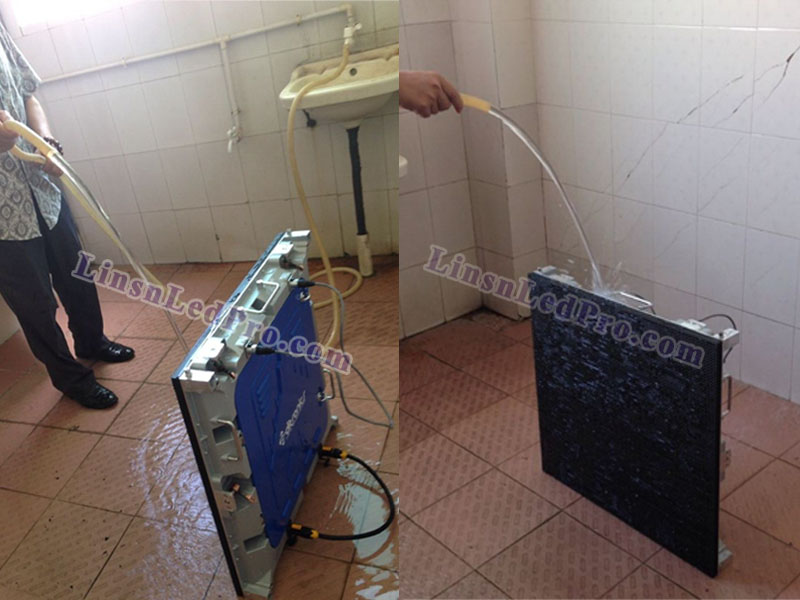

- IP65 rating, perfect for indoor & outdoor uses;
- Die-casting aluminum material, excellent heat dissipation;
- Exquisite appearance and seamless connection;
- Light weight, only 13.5KG, easy set up and tear down;
- The LED cabinet color can be custom as requested;
- The modules can be quickly dismantled for servicing;
- Support LINSN and other popular LED control systems.

Specifications:

1	Pixel pitch	8mm
2	Pixel density	15,625 pixels/sq.m
3	Pixel configuration	1R1G1B, SMD3535, 3in1

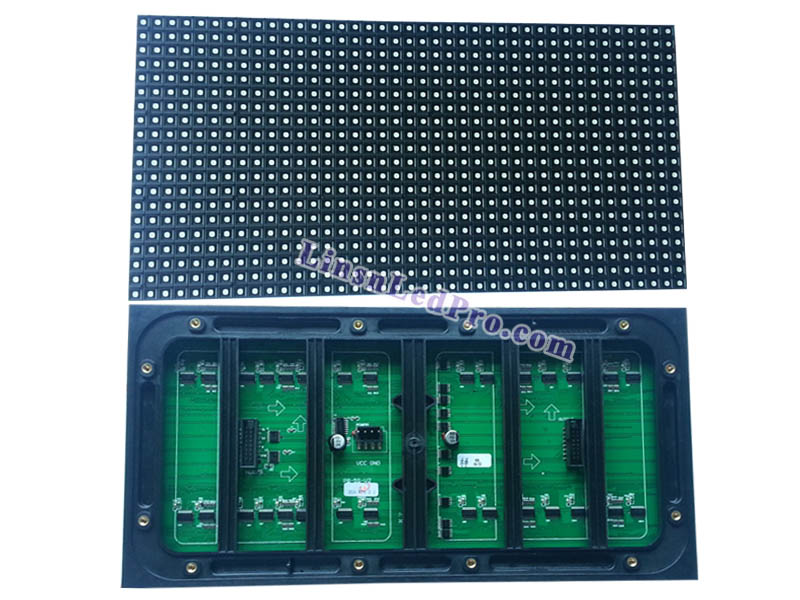

4	LED module size (L*H)	320*160mm
5	LED module resolution	40*20 pixels
6	LED panel size (LHD)	64064080mm
7	LED panel resolution	80*80 pixels
8	LED display board panel weight	13.50KG/piece
9	LED display board panel material	Diecasting aluminum
10	Brightness	≥6,000 nits/sq.m
11	Driving method	1/4 scan
12	View angle	140°H /140°V
13	Best viewing distance	>8M
14	Refresh rate	≥900Hz
15	Grey scale	≥8,196 levels
16	Display colors	>16.7M
17	Power consumption	Max.:980W/sq.m, Avg.:392W/sq.m
18	Input voltage	110~230V/AC (±10%)
19	Input power frequency	50/ 60Hz
20	IP rating (front/rear)	IP65/54
21	Operating environment	Temperature: -20°C~+50°C, Humidity: 10%~95%
22	Storage environment	Temperature:-40-50°C, Humidity: 10-90%
23	Life span (50% brightness)	≥100,000 hours
24	Control system	LINSN or other popular control systems
25	Transmission distance	Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26	Operating system	Windows XP/Win7//8/Vista
27	Video input/with video processor: Rgblink,Vdwall,Magnimage,etc	VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28	Compliant standard	CE/UL/RoHS
