Outdoor P16 DIP RGB Advertising LED Display System

Outdoor P16 DIP RGB Advertising LED Display System

Outdoor LED Display
Model: LLP-ODFP16MM
Brightness ≥7,500 nits/sq.m
Protection Rating: IP65
Product description: Outdoor P16 DIP RGB advertising LED display system has totally changed the view concept of traditional LED displays by creating larger visual area and serving more spectators. It is an ideal solution
INQUIRY

Outdoor P16 DIP RGB Advertising LED Display System

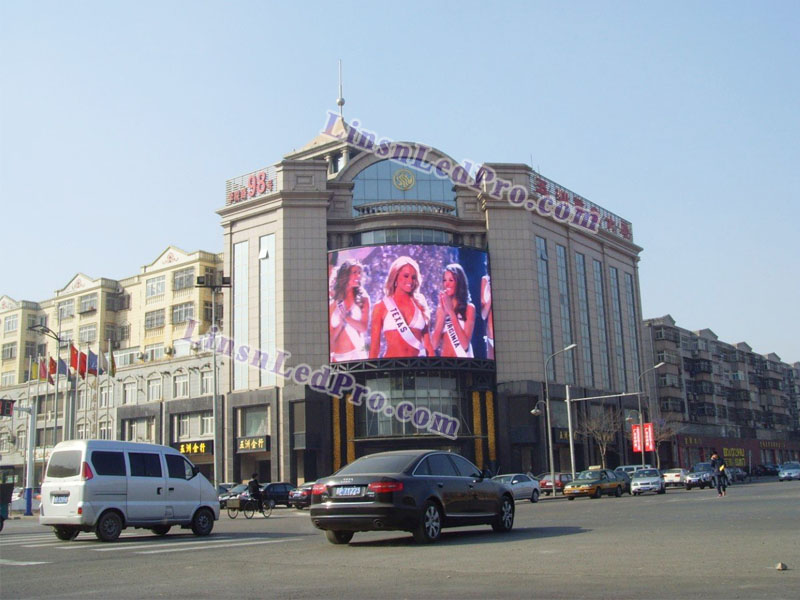

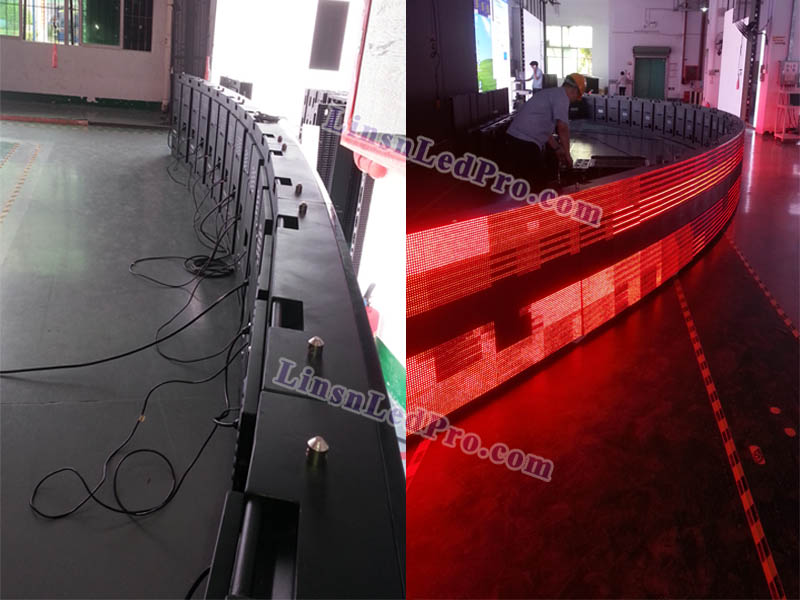

Outdoor P16 DIP RGB advertising LED display system is referred to column/post, roof top,curved, wall mounted or stadium LED screen, etc. The cabinet size and shape can be customized according to customer's needs.

Features:

- Easy installation and less maintenance;
- Stable performance and great heat dissipation;
- Low Power consumption and long life span ;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Synchronous control with PC or asynchronous mode without PC for small size screens;
- Brightness is adjustable manually or automatically against to light changing;
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- Can be controlled and monitored with camera at any time & anywhere via internet access;
- Online detecting and fault informing is optional with monitored card;
- Supports all windows operation systems-2000,XP,7,8,Vista for its control software.

Specifications:

1	Pixel pitch	16mm
2	Pixel density	3,906 pixels/sq.m
3	Pixel configuration	1R1G1B, DIP346

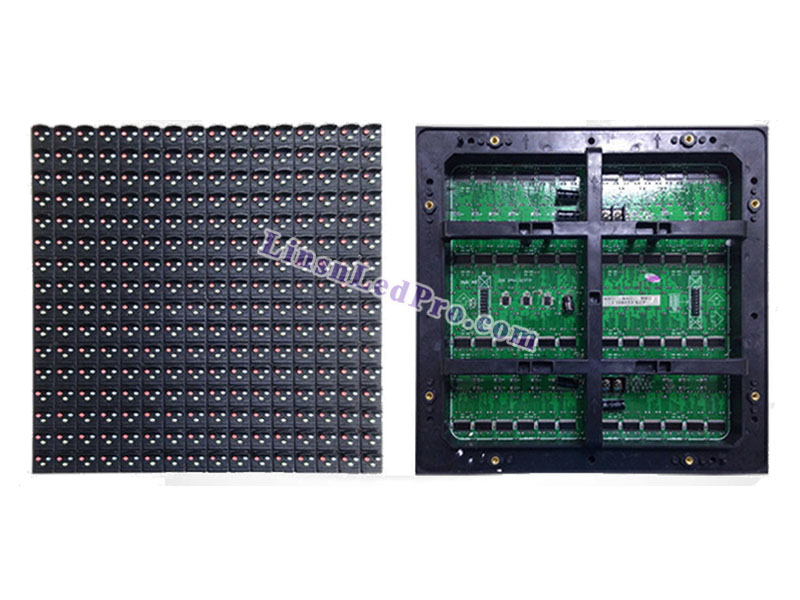

4	LED module size (L*H)	256*256mm
5	LED module resolution	16*16 pixels

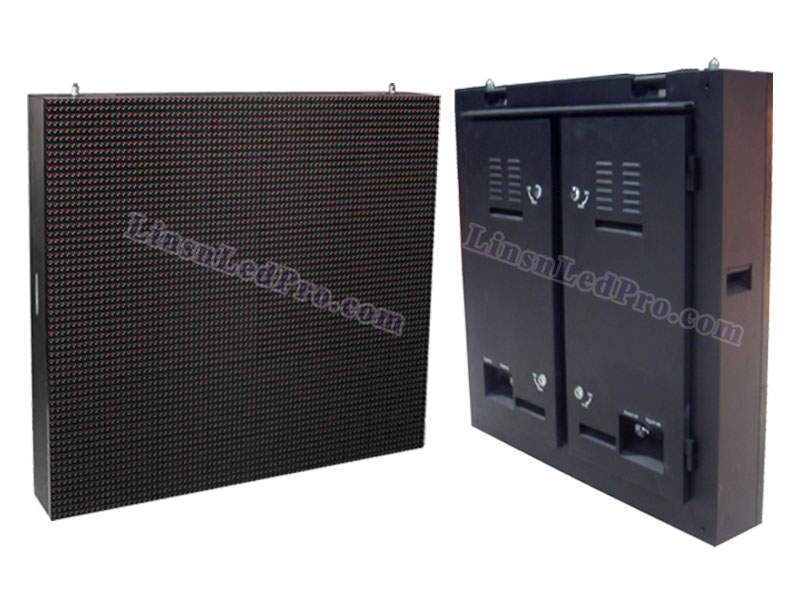

6	LED cabinet size (LHD)	10241024155mm or as needed
7	LED cabinet resolution	128*128 pixels
8	LED display cabinet weight	65 KG/sq.m
9	LED system cabinet material	Cold rolled steel sheet
10	Brightness	≥7,500 nits/sq.m
11	Driving method	Static
12	Viewing angle	110°H /60°V
13	Best viewing distance	>16M
14	Refresh rate	>600Hz
15	Grey scale	≥8,192 levels
16	Display colors	>16.7M
17	Power consumption	Max.:1,000W/sq.m, Avg.:400W/sq.m
18	Input voltage	110~230V/AC (±10%)
19	Input power frequency	50/ 60Hz
20	IP rating (front/rear)	IP65/IP54
21	Operating environment	Temperature: -20°C~+50°C, Humidity: 10%~95%
22	Storage environment	Temperature:-40-50°C, Humidity: 10-90%
23	Life span (50% brightness)	≥100,000 hours
24	Control system	LINSN or other popular control systems
25	Transmission distance	Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26	Operating system	Windows XP/Win7//8/Vista
27	Video input/with video processor: Rgblink,Vdwall,Magnimage,etc	VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28	Compliant standard	CE/UL/RoHS
