Indoor P5 SMD RGB LED Display System
Features:
- HD image quality with 40,000 pixels/m2;
- Environmental protection and electricity saving;
- More Stable performance and longer life span;
- Large viewing angle-H/V(140°/140°) and high contrast ratio;
- Noiseless design to meet special needs;
- Perfect solution for both fixed and rental purposes;
- Customized design on cabinet can be made such as curve shape;

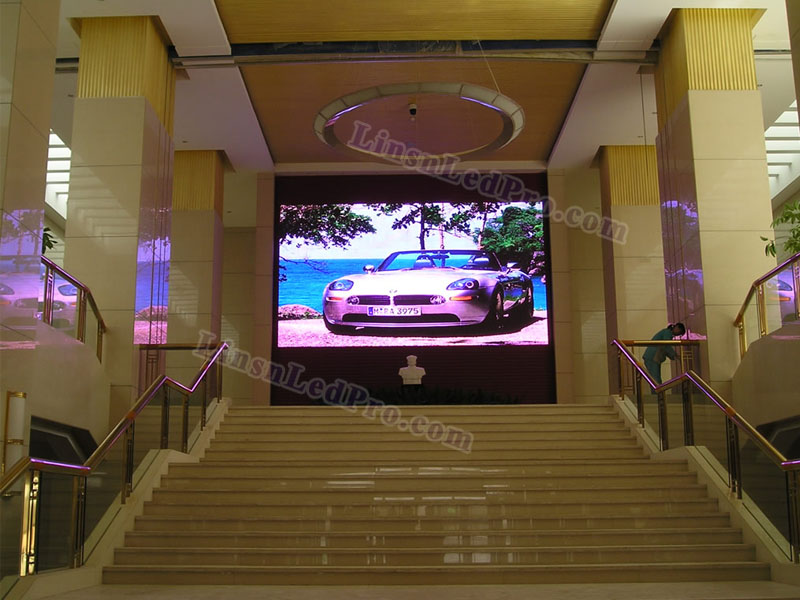

- Suitable for all kinds of indoor installations at close viewing distance;
- Support online detecting and fault informing with monitor card;
- User friendly software operation, programs played can be digitally set.
Specifications:
| 1 |
Pixel pitch |
5mm |
| 2 |
Pixel density |
40,000 pixels/sq.m |
| 3 |
Pixel configuration |
1R1G1B, SMD3525 or SMD2121, 3-in-1 |
| 4 |

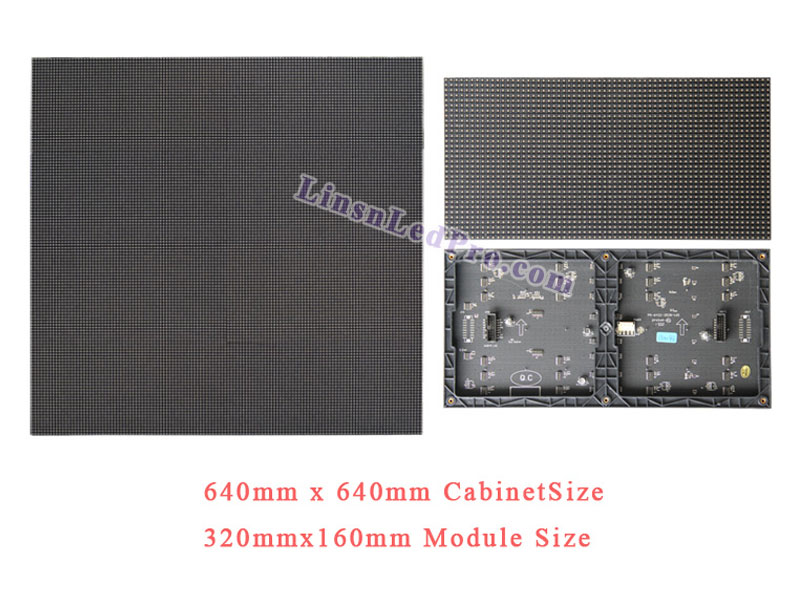

Module size(L*H) |
320*160mm or 160*160mm |
| 5 |
Module resolution |
64*32 pixels or 32 *32 pixels |
| 6 |

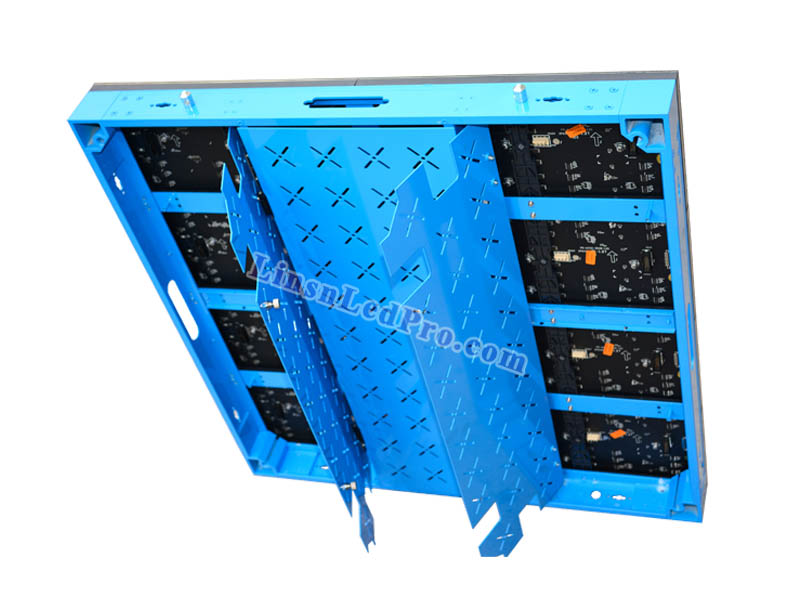

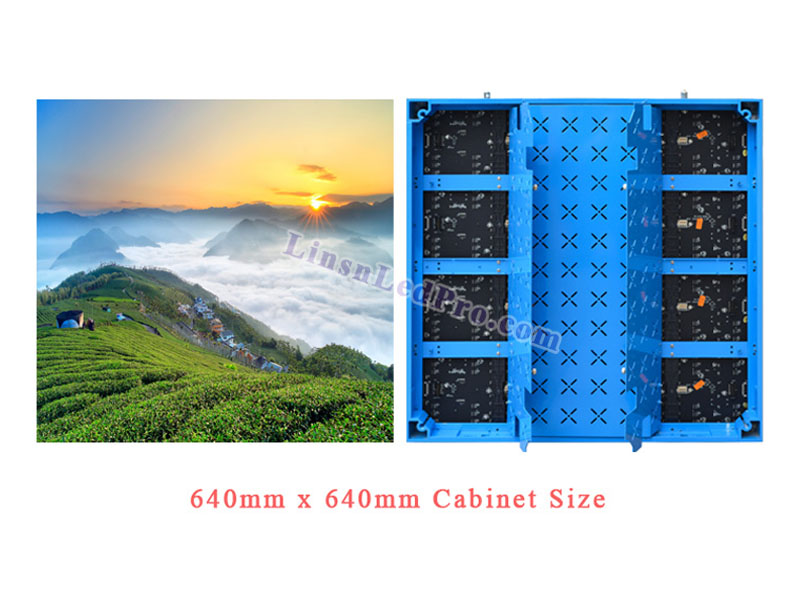

Panel size(L*H*D) |
640*640*80mm or as requested |
| 7 |
Panel resolution |
128*128 pixels |
| 8 |
LED cabinet weight |
11KG/panel with aluminium alloy |
| 9 |
LED display system material |
Diecasting aluminum/aluminium alloy/iron at customer's request |
| 10 |
Brightness |
≥1,600 nits/sq.m |
| 11 |
Driving method |
1/8 or 1/16 scan |
| 12 | View angle |
145°H /145°V |
| 13 |
Best viewing distance |
>5M |
| 14 |
Refresh rate |
≥800Hz |
| 15 |
Grey scale |
≥4,096 levels |
| 16 |
Display colors |
>16.7M |
| 17 |
Power consumption |
Max.:1,200W/sq.m, Avg.:480W/sq.m |
| 18 |
Input voltage |
110~230V/AC (±10%) |
| 19 |
Input power frequency |
50/ 60Hz |
| 20 |
IP rating (front/rear) |
IP43 |
| 21 |
Operating environment |
Temperature: -20°C~+50°C, Humidity: 10%~95% |
| 22 |
Storage environment |
Temperature:-40-50°C, Humidity: 10-90% |
| 23 |
Life span (50% brightness) |
≥100,000 hours |
| 24 |
Control system |
LINSN or other popular control systems |
| 25 |
Transmission distance |
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m |
| 26 |
Operating system |
Windows XP/Win7//8/Vista |
| 27 |
Video input/with video processor: Rgblink,Vdwall,Magnimage,etc |
VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc |
| 28 |
Compliant standard |
CE/UL/RoHS |
