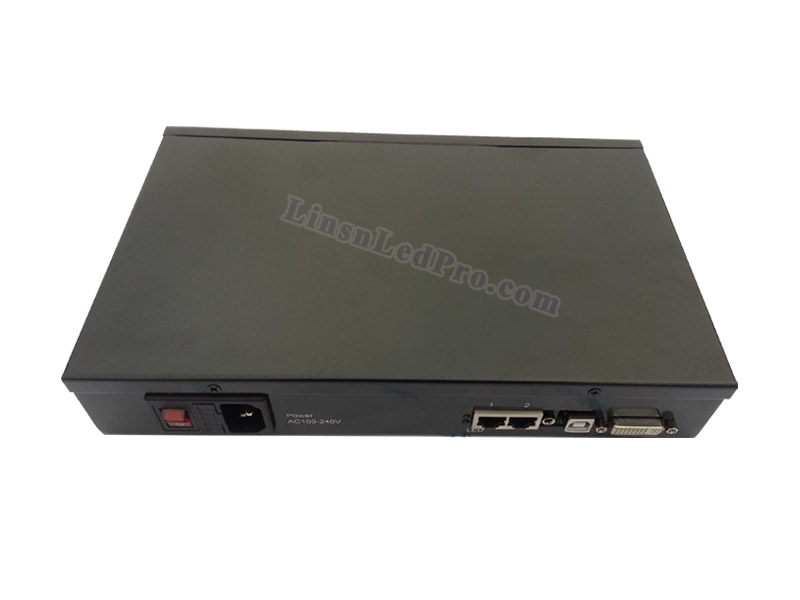

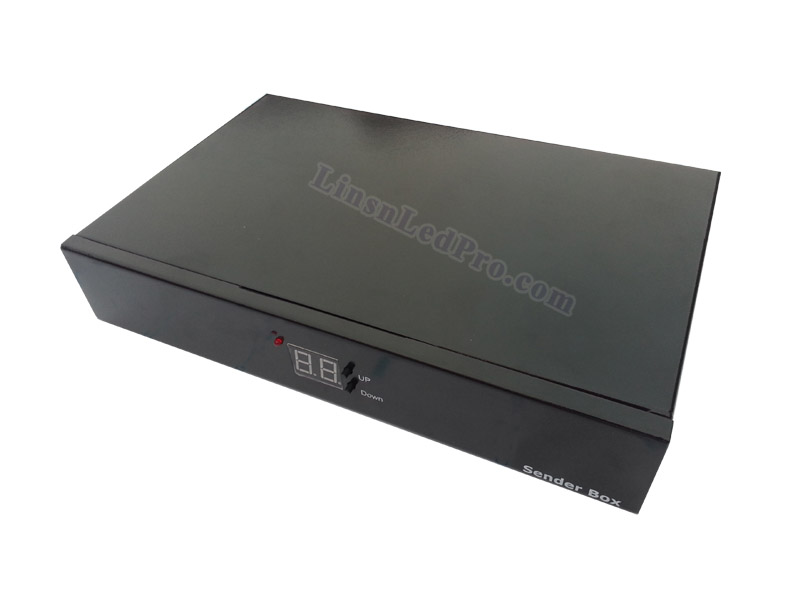

LINSN TS951 Full Color LED System Sender Box

Features:

Support two output mode 30Hz and 60Hz, with One DVI video and Audio signalinput, support signal from media player or DVD player, there is no need for additional device. More features:

1.Support display connection file (.CON) and configuration file (.RCG) broadcasting features
2.Replacing receiving card without resending connection file (.RCG or .com)
3.Support zoom in/out
4:with two network outputs: single port max support 655360 pixels
5.Can put the whole computer LCD monitor content on LED display with zoom in/out features
6.The brightness can be adjusted manually (need outer box)；support 64-grade, 32-grade, 16-grade three scales setting.

30Hz mode（using two ports):

Support 3072 * 672;
Support 3584 * 576;
Support 4032 * 512;
Support 3840 * 544;
Support 2368 *864;
Support 2048 * 1024;
Support 3392 * 608;
Support 3200 * 640;
Support 2560 * 800;
Support 2880 * 704;

60Hz mode（using two ports):

Support 1280 * 1024;
Support 1920 * 672;
Support 1280 * 1024;
Support 2048 * 640;
Support 1344 * 960;
Support 1600 * 800;
Support 1792 * 720;
Support 1472 * 880;
Support 1280 * 1024;
Support 1280 * 1024;

The following requires supporting through graphic card in 60Hz mode:

Support 1024 * 1280;
Support 832 * 1280;
Support 640 * 1280;
