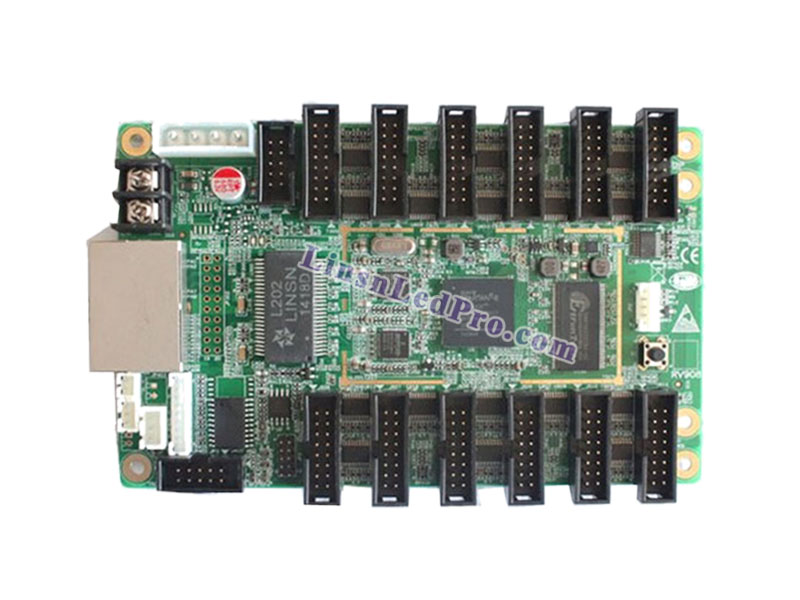

LINSN RV908H HUB75 LED Receiving Card

Model: LINSN RV908H
In Stock for Sale
Can Be Ordered Online
DHL Worldwide Shipping
Product description: LINSN RV908H LED receiving card is the updated version of RV908. Geared with HUB75 ports, it is designed specifically for the LED display manufacturers with standardization.
INQUIRY

LINSN RV908H HUB75 LED Receiving Card

LINSN RV908H receiving card is free of hub card design, compared to RV908, RV908H has the following advantages.

1. Cost effective: on-board monitoring, no extra monitoring card needed.

2. Multi-function: to carry pixels of LED screen and monitor the LED screen working status, preventing safety issue and extend lifetime of usage.

Monitoring Functions of LINSN RV908H LED Reception Card:

1. Temperature: integrated on board, working range:-80℃-125℃.

2. Smoke: Need smoke module, to detect smoke condition

3. Humidity:Need humidity sensor, to detect humidity condition.

4. Two Fan-speed:need 4 lines fan, including one controlling line. Fan voltage: 5V-24V

5. Cabinet door open/closed detection:need touch sensor installed on cabinet door. With this function, protect receiving card, power supply and LED PCB from rain, sunlight, etc.

6. Three voltage surveillance: two for cabinet power, one for receiving card.
