LINSN DS802 Single/Double Color LED Sending Card

  • Model: LINSN DS802
  • In Stock for Sale
  • Can Be Ordered Online
  • DHL Worldwide Shipping
  • Product description: LINSN DS802 is created for single and double color LED display sign. DS802 can supports 2048*640 pixels. Single network output port supports 1280*512 or 640*1024.
  • INQUIRY

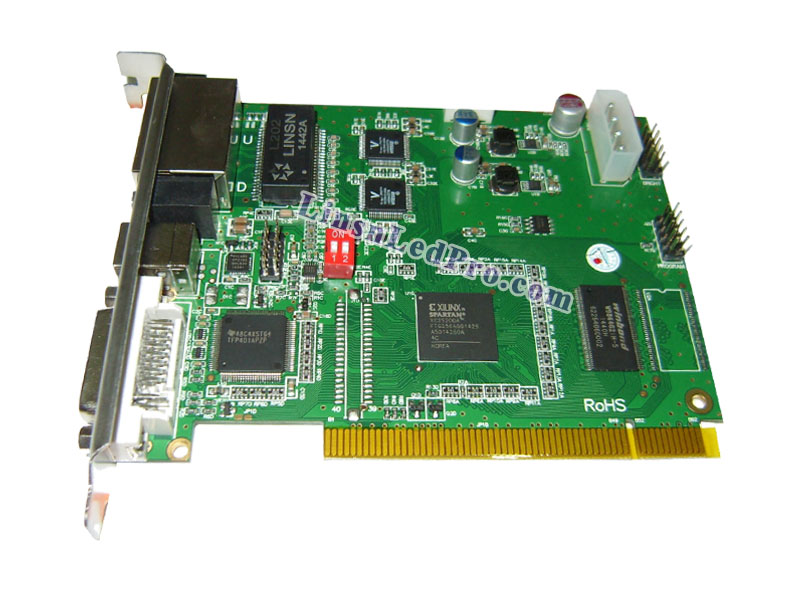

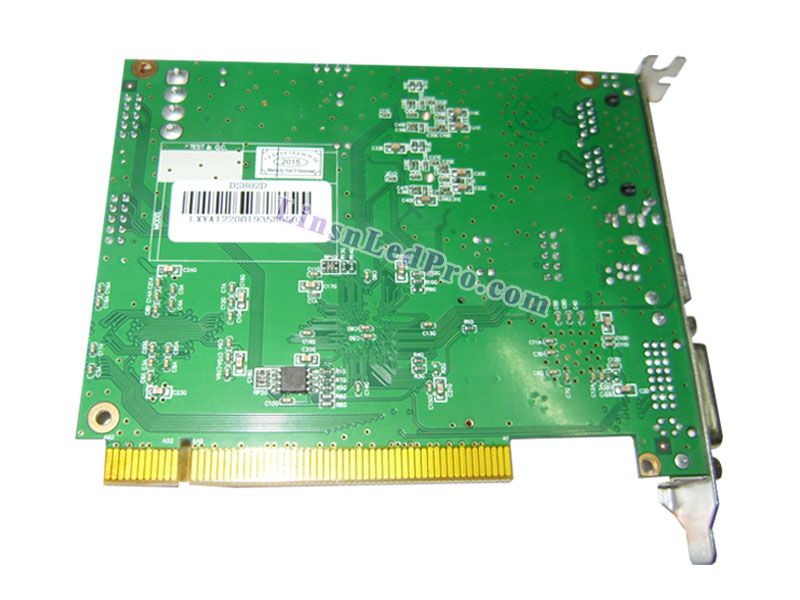

LINSN DS802 Single/Double Color LED Sending Card

The 802 sending card can control multi-displays, realizing displays combination, synchronous display, and independent playing. DS802 (DS802D) is specially designed for single and dual color LED display sign applications.

DS802D Card Features:

1. DS802 sending card max supports 2048*640

2. Supporting display mode: 640*480  800*600  1024*768  1280*768  1280*800 1280*1024 1440*900  1440*1080  1600*1200
1680*1050  1728*1296  1920*1080  1920*1200  2048*1152  2048*1280
3. Audio Transmission Function
802 sending card sends audio data using network cable, and Function board outputs audio signals to the display. Double 24bits
64KHZ hi-fi digital signal to analog signal or analog signal to digital signal, making display have the perfect video effect.
4. Cascade function
Through the dig switch on 802 sending card, several 802 sending cards can be easily cascaded to support a super large led
display
5. Sending card U/D port flexibility for carrying half width or half height
For example, TS801 can max support 1280*1024 with two ports
6. Single network output port supports 1280*512 or 640*1024
7. Sending card rotation function
In Sender setting, sending card has 0, 90, 180, 270 degree rotation function
8. Sending card zoom in/out function
In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out
9. Supporting 10-bit colors:
The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors.
The eighth supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work with our video processors using the 30 bits TTL

10. Multi-display synchronous and combination function
