  • RGBLINK VENUS X1PRO LED Video Scaler

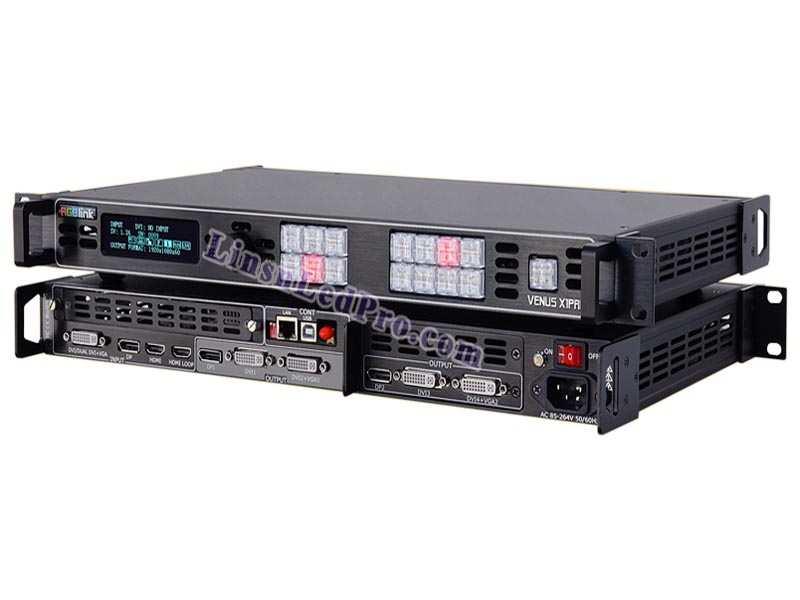

RGBLINK VENUS X1PRO LED Video Scaler

RGBLINK VENUS X1PRO LED Video Scaler

  • Model: RGTBLINK VENUS X1PRO
  • In Stock for Sale
  • Can Be Ordered Online
  • DHL Worldwide Shipping
  • Product description: The modular RGBLINK VENUS X1 PRO LED video scaler allows the addition of a range of signal options over and above the standard inputs. Standard inputs include 4K signals on Dual Link DVI, HDMI and Dis
  • INQUIRY

RGBLINK VENUS X1PRO LED Video Scaler

RGBLINK VENUS X1PRO LED video scaler features simply professional 4K scaling and switching. 4K switching has never been more practical and straight forward. For those needing 4K distribution and splicing on four DVI, simply add the additional output module. The output module expands VENUS X1PRO to four 2K DVI outputs and adds a further DisplayPort output. Alternately, VENUS X1PRO with the output module can be become a 4K presentation switcher with the additional DVI outputs (and DisplayPort) becoming a full preview. All the power and flexibility familiar with RGBLink X series

Key Features:

4K input support on DP, HDMI and DVI

Input standard 2K formats

Scale and switch seamlessly between 2K and 4K inputs

Output to any format 2K or 4K

EDID management on board

HDCP 2.0 compliant

DisplayPort 1.1a with MST

Custom output resolution

Modular design

Options for expandability

Control your way either on board or with a range ofremote apps

Specifications:

Inputs

Standard:

1 x DVI

1 x VGA

1 x Display Port 1.1a

1 x HDMI 1.4(with loop)

Option

Module:

3 x Option Module(1 x VGA/DVI/DP/CVBS/USB input per module)

3 x Option Module(1 x SDI/HDMI input per module, each with loop)

1 x Option Module(1 x DVI input per module, each with loop)

3 x Audio Module(3 x 3.5mm Balanced Analog Audio inputs per module)

Outputs

Standard:

1 x Display Port 1.1a

2 x DVI

Option

Module:

1 x Audio Module((1 x Balanced Analog Audio output per module)

1 x Output Expansio Module(1 x Display Port 1.1a and 2 x DVI per Module)

Communication Ports

LAN

TCP/IP

USB

2.0

WIFI

Option Module

Input Voltage

AC 85~264V  50/60Hz

Max Power

65W

Net Weight

2.7kg

Package Weight

6.3kg

Net Size

480mm x 303mm x 45mm

Package Size

535mm x 355mm x 130mm

Work Temperature

-25°C~45°C

Relative Humidity

20%~90%
