P5mm SMD Outdoor LED Advertising Player

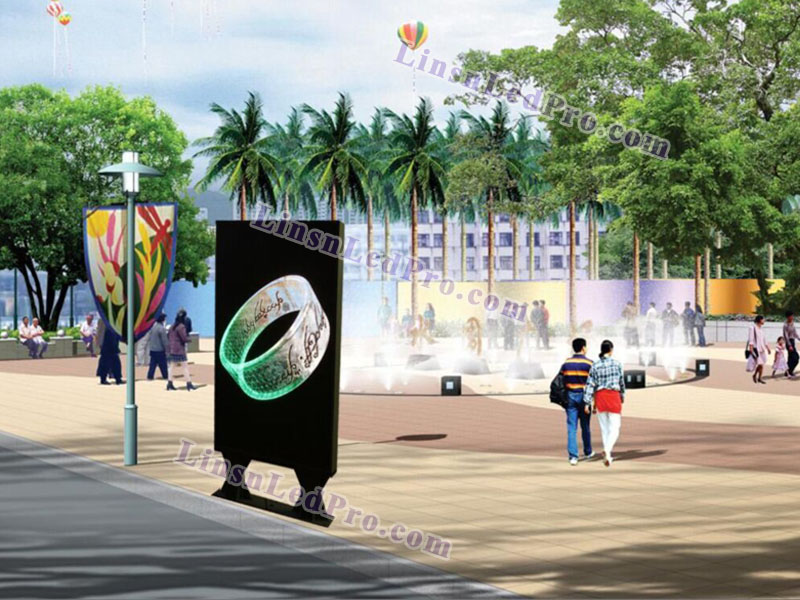

LED Advertising Player also refers to LED totem display or LED poster, that is being replaced for traditional light box display. Geared with P5mm waterproof SMD LEDs, this rugged floor standing LED totem display system features high resolution, high brightness, wide viewing angles, consistent color uniformity and IP65 protection rating. It is movable and can be used both indoors and outdoors in any weather conditions which is a perfect fit to be placed as advertising or guidance purpose at exhibition centers, shopping malls, campuses, parks, residential areas, commercial streets, etc. The display size is 960mm x 1600mm and it includes asynchronous control system. The display size, pixel pitch or the totem shape can be custom made according to customer's needs.
Feautures:
- Ultra high resolution and brightness;
- Wide viewing angles and excellent color uniformity;
- Great heat dissipation and less maintenance;
- Easy installation for both fixed & cross rental uses;
- Low Power consumption and long life span;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Supports synchronous control with PC or asynchronous mode without PC;
- Brightness is adjustable manually or automatically against to light changing;
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- Can be controlled and monitored with camera at any time & anywhere via internet access;
- Supports all windows operation systems-XP,7/8,Vista for its software;
Specifications:
1 |
Pixel pitch |
5mm |
2 |
Pixel density |
40,000 pixels/sq.m |
3 |
Pixel configuration |
1R1G1B, SMD2525 3in1 |
4 |

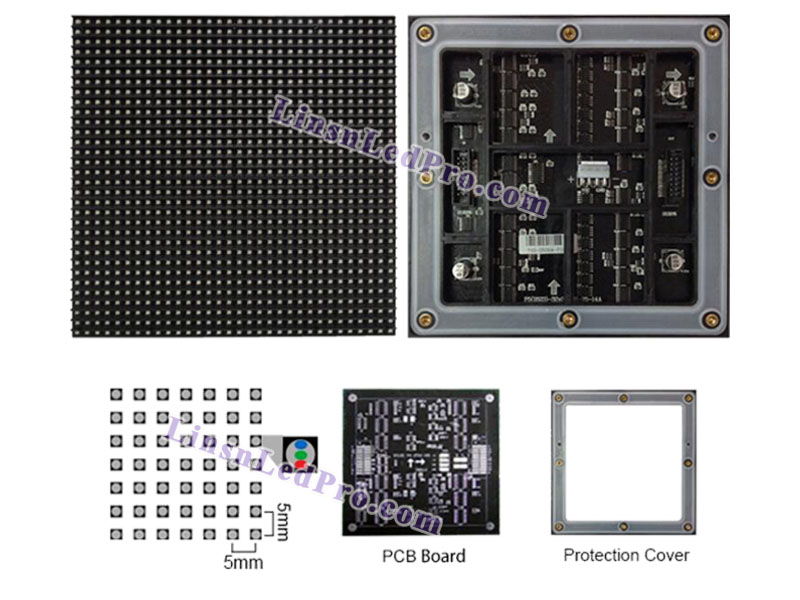

Module size (L*H) |
160*160mm |
5 |
Module resolution |
32*32 pixels |
6 |
Totem size (L*H*D) |
960*11600*155mm or as needed |
7 |
Totem resolution |
96*96 pixels |
8 |
LED totem weight |
68 KG/sq.m |
9 |
LED totem material |
Cold rolled steel sheet |
10 |
Brightness |
≥6,800 nits/sq.m |
11 |
Driving method |
1/8 scan |
12 |
Viewing angle |
140°H /140°V |
13 |
Best viewing distance |
>5M |
14 |
Refresh rate |
>800Hz |
15 |
Grey scale |
≥8,192 levels |
16 |
Display colors |
>16.7M |
17 |
Power consumption |
Max.:1,000W/sq.m, Avg.:400W/sq.m |
18 |
Input voltage |
110~230V/AC (±10%) |
19 |
Input power frequency |
50/ 60Hz |
20 |
IP rating (front/rear) |
IP65/IP54 |
21 |
Operating environment |
Temperature: -20°C~+50°C, Humidity: 10%~95% |
22 |
Storage environment |
Temperature:-40-50°C, Humidity: 10-90% |
23 |
Life span (50% brightness) |
≥100,000 hours |
24 |
Control system |
LINSN or other popular control systems |
25 |
Transmission distance |
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m |
26 |
Operating system |
Windows XP/Win7//8/Vista |
27 |
Video input/with video processor: Rgblink,Vdwall,Magnimage,etc |
VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc |
28 |
Compliant standard |
CE/UL/RoHS |
