P1.9 Indoor HD LED Video Wall Panel

  • HD LED Video Wall
  • Application: Indoor
  • Pixels: 270,421 dots/sq.m
  • Refresh Rate ≥1,920Hz

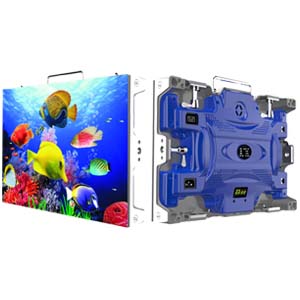

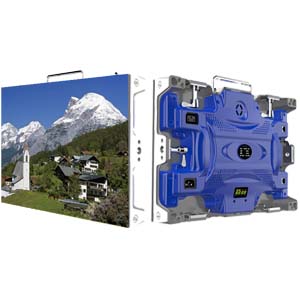

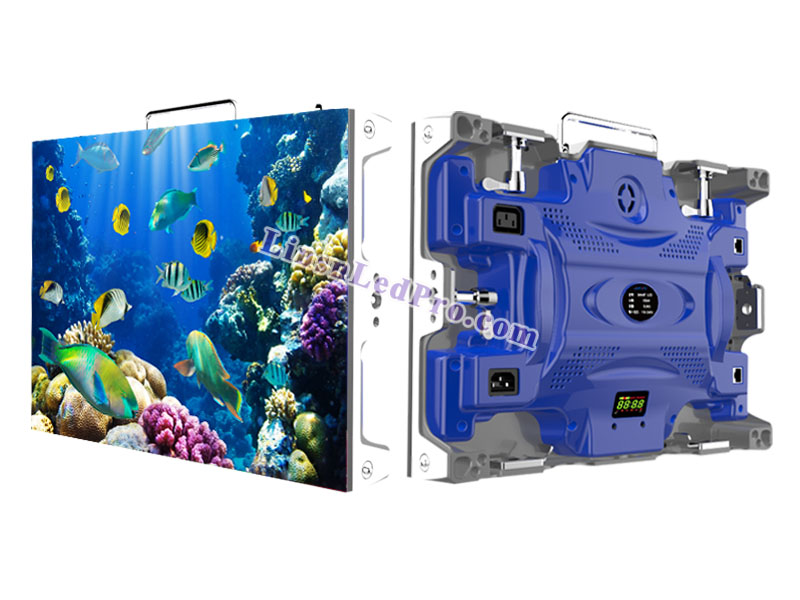

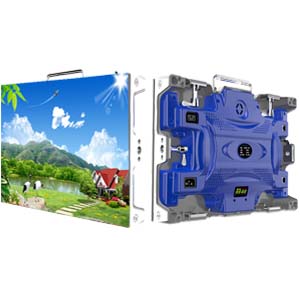

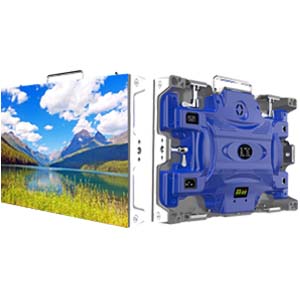

  • Product description: P1.9 Indoor HD LED video wall panel is equipped with 400x300mm diecasting aluminium cabinet featuring ultra high defintion, refresh rate and contrast ratio,etc.
  • INQUIRY

P1.9 Indoor HD LED Video Wall Panel

Features:

Strong stability: adopts high-quality components and sophisticated processing technology, effectively reduce the death rate. Power supply signal dual backup system to ensure long-term stable operation, support 7 * 24 hours of work.

High refresh rate: No stripes for HD camera shooting

Low light high gray: can still show the perfect gray scale performance when brightness down to 20%. Low brightness display is close perfect gray scale, the display effect is more vivid than traditional display screen.

Good consistency: high-intensity structure of fine-tuning technology to achieve the entire screen seamless stitching. By fine-tuning, eliminate bright lines. Point-by-point calibration technology to keep the entire screen brightness and color in excellent uniformity.

High contrast: high-quality black LED and ripple black sub-black mask, the image is clear and sharp, colors are bright.

Low reflection: adopts black matte lights and corrugated absorber mask, in light environment , there issmall reflection on the screen and it is still clearly visible.

Intelligent brightness adjustment: automatically adapt to light-sensitive adjustment equipment, will not affect the display screen due to ambient light. Almost no loss of gray in 50~ 800 nit brightness .

Ultra-wide viewing angle: LED screen body angle has 160 °/160 °, the angle of the screen is evenly clear and natural.

Specifications:

1 Pixel pitch
1.92mm
2 Pixel density
270,421 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD1010, 3in1
4 LED module size (L*H)
200*150mm
5 LED module resolution
104*78 pixels
6 LED panel size (L*H*D)
400*300*80mm
7 LED panel resolution
208*156 pixels
8 LED video wall panel weight
3.8KG/cabinet
9 LED video wall panel material
Diecasting aluminum
10 Brightness
≥1,200 nits/sq.m
11 Driving method
1/32 scan
12 Viewing angle
≥145°H /145°V
13 Best viewing distance
>1.9M
14 Refresh rate
1,920Hz
15 Grey scale
≥4,096 levels
16 Display colors
>16.7M
17 Power consumption
Max.:680W/sq.m, Avg.: 272W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP43
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥75,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28 Compliant standard
CE/UL/RoHS
